HVACZAR - Authorized MrCool Dealer
24K MRCOOL Hyper Heat Central Ducted System
24K MRCOOL Hyper Heat Central Ducted System view 2
24K MRCOOL Hyper Heat Central Ducted System view 3
24K MRCOOL Hyper Heat Central Ducted System view 4
24K MRCOOL Hyper Heat Central Ducted System view 5
Complete System
1 / 5
Central Ducted·Pro InstallComplete System

24K MRCOOL Hyper Heat Central Ducted System

SKU CENTRAL-24-HP-230B00-O

24,000 BTUup to 1,200 sq ft208-230
$3,416.00
Pay over time withAffirmaffirmKlarnaKlarna— see your options at checkout.

With Incentives

Save up to $1,979
Sticker price$3,416
− Federal 25C tax credit (30%)−$1,025
− Est. state/utility rebateup to −$1,708
Effective costas low as $1,437

Hyper Heat cold-climate model — automatically meets CEE Tier 2. Find your state's rebate

In Stock — Ships within 1-3 days

Customize it — compatible add-ons only

R-454B 2nd-gen heat strips for the Hyper Heat Central Ducted air handler.

MRCOOL 24V smart thermostat for ducted systems — Wi-Fi control and scheduling.

Maintenance kit and coil cleaner keep efficiency (and the warranty) healthy.

Universally compatible tools and care items — maintenance kit, coil cleaner, install tools.

7-year warranty · Covers up to 1,200 sq ft
Ships nationwide · exact freight at checkout · Ships in 1-3 business days
30-day returns on unopened products · See policy
Secure checkout:Visa · Mastercard · Amex · Discover

Sizing Help

Not sure if 24K BTU is right for your space?

Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.

Match My SpaceOr call (657) 582-0899

Description

24K MRCOOL Hyper Heat Central Ducted System

What's in This System

The actual units this bundle ships with — pictured individually, priced as one system.

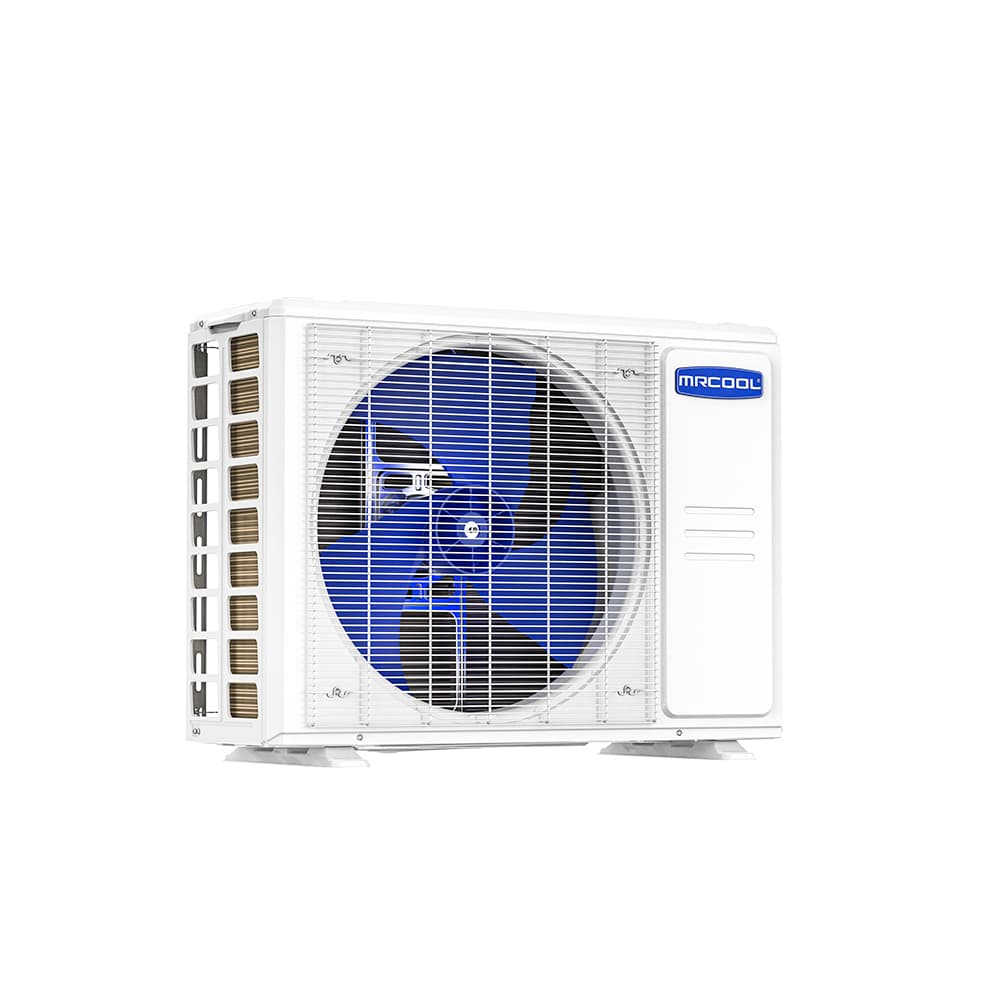

24K MRCOOL® Hyper Heat Central Ducted Condenser

Outdoor Condenser — included

24K MRCOOL® Hyper Heat Central Ducted Condenser

Sold separately for $2,040

View this unit's full specs

Ducted Air Handler

Factory-matched to this system — included in the bundle

Heads up: a line set is not included with this system — add a compatible one from the add-ons above so it arrives install-ready.

2 Years compressor warranty
Compressor: 2 Years warrantyParts: 1 Year warranty

24K MRCOOL Hyper Heat Central Ducted System — Model Details

What this specific model is sized for, how it installs, how it performs, and what it costs to run.

Room & Space Coverage — 24,000 BTU

The 24K MRCOOL Hyper Heat Central Ducted System delivers 24,000 BTU of cooling and heating capacity, sized for spaces up to 1,200 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit handles medium primary rooms, master suites with attached bath, converted garages, and workshops. If your space includes a sunny west-facing wall or a finished bonus room above it, lean toward the upper end of the coverage range.

Power & Electrical Requirements

Power requirement: 208-230V (standard US residential 240V service).

Install Difficulty — Professional Install

This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system.

Product Details

24K MRCOOL Hyper Heat Central Ducted System

Frequently Asked Questions

Everything you need to know about this product

What size room will the 24K MRCOOL Hyper Heat Central Ducted System cool?

At 24,000 BTU this unit is sized for rooms up to 1,200 sq ft under standard 8-ft ceilings with average insulation. Add 10–20% for sun-exposed rooms, poorly insulated spaces, or ceilings above 9 ft.

Do I need a licensed HVAC installer?

Yes — this unit is professionally-installed. The installer needs EPA 608 certification to handle the refrigerant, plus standard HVAC tools (vacuum pump, manifold gauges, nitrogen kit). Expect a one-day install on a single-zone system, more on multi-zone.

What electrical circuit do I need for installation?

208-230V dedicated circuit with the disconnect within sight of the outdoor unit per NEC 440.14. An electrician will size the breaker based on the minimum circuit ampacity shown on the nameplate. Budget $400–$900 for a new dedicated 240V circuit if one isn't already present.

How fast does HVACZAR ship this unit?

Shipping is calculated at checkout from the order weight, and you see the exact charge before paying. In-stock SKUs leave the warehouse within 1–3 business days. Transit time is 3–7 business days via truck freight (with liftgate delivery) for outdoor units and UPS Ground for accessories. Tracking is emailed at pickup.

What if it arrives damaged or I change my mind?

Inspect the unit before signing for freight delivery. If there is visible damage, note it on the delivery receipt and refuse the shipment — we ship a replacement at no cost. Unopened and unused units can be returned within 30 days for a refund less outbound shipping.

What is the warranty on the 24K MRCOOL Hyper Heat Central Ducted System?

The 24K MRCOOL Hyper Heat Central Ducted System comes with a 7-year manufacturer warranty when purchased from HVACZAR, an authorized MrCool dealer. Register your unit after purchase to activate full warranty coverage.

How long does shipping take?

Shipping is calculated at checkout from the order weight. Most MrCool systems ship within 1-3 business days and arrive in 3-7 business days via FedEx, UPS, or truck freight with liftgate delivery.

What size room does 24,000 BTU cover?

A 24,000 BTU unit is sized for rooms up to 1,200 sq ft. Proper sizing depends on ceiling height, insulation, climate zone, and window exposure. Use our system finder for a precise recommendation.

Do you offer returns?

Yes. HVACZAR offers a 30-day return policy on unopened, unused products in original packaging. Contact us to initiate a return and receive a return authorization number.

How can I pay?

We accept all major credit cards (Visa, Mastercard, American Express, Discover) via Stripe secure checkout. All transactions are encrypted and protected.
