MRCOOL® E Star DIY 4th Gen 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz
SKU DIY-18-HP-WM-230C25
With Incentives
Save up to $1,28622.7 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
MrCool DIY factory warranty — register after install to activate the full coverage tiers.
Sizing Help
Not sure if 18K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
MRCOOL® E Star DIY 4th Gen 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz
What's in This System
The actual units this bundle ships with — pictured individually, priced as one system.

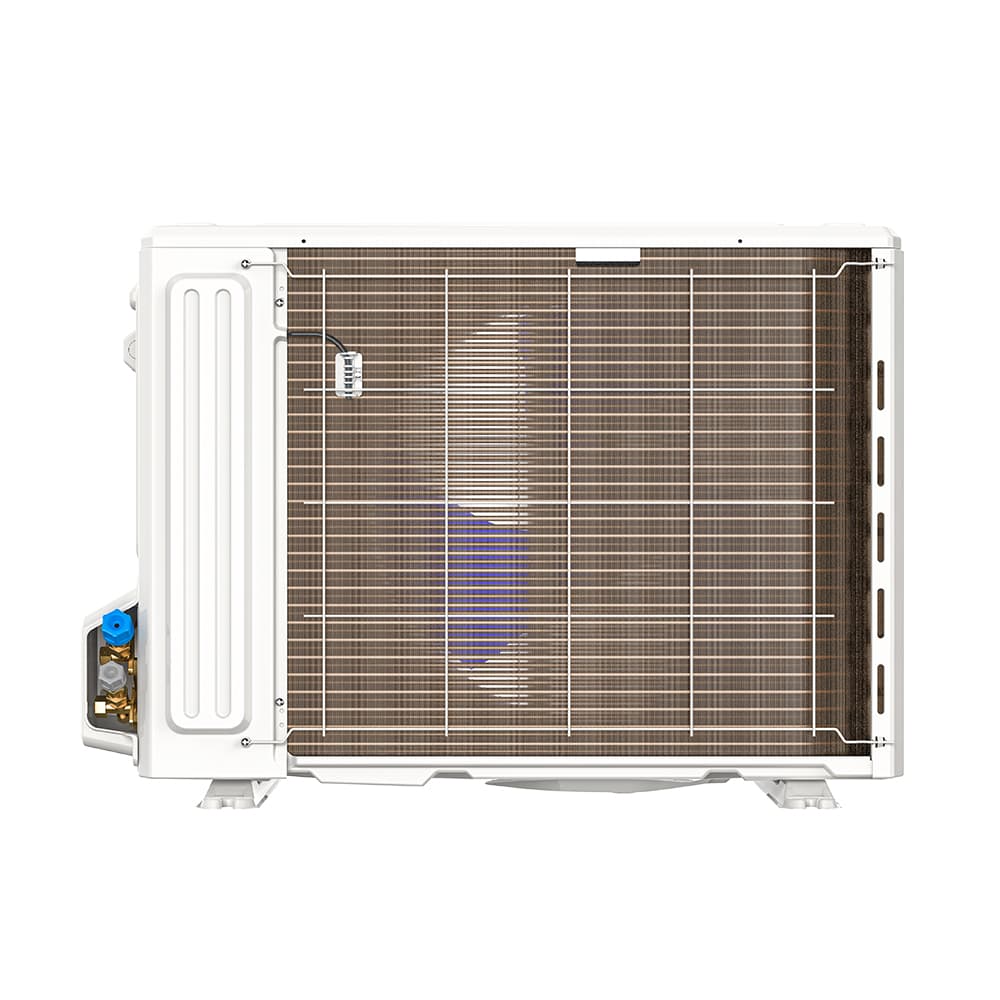

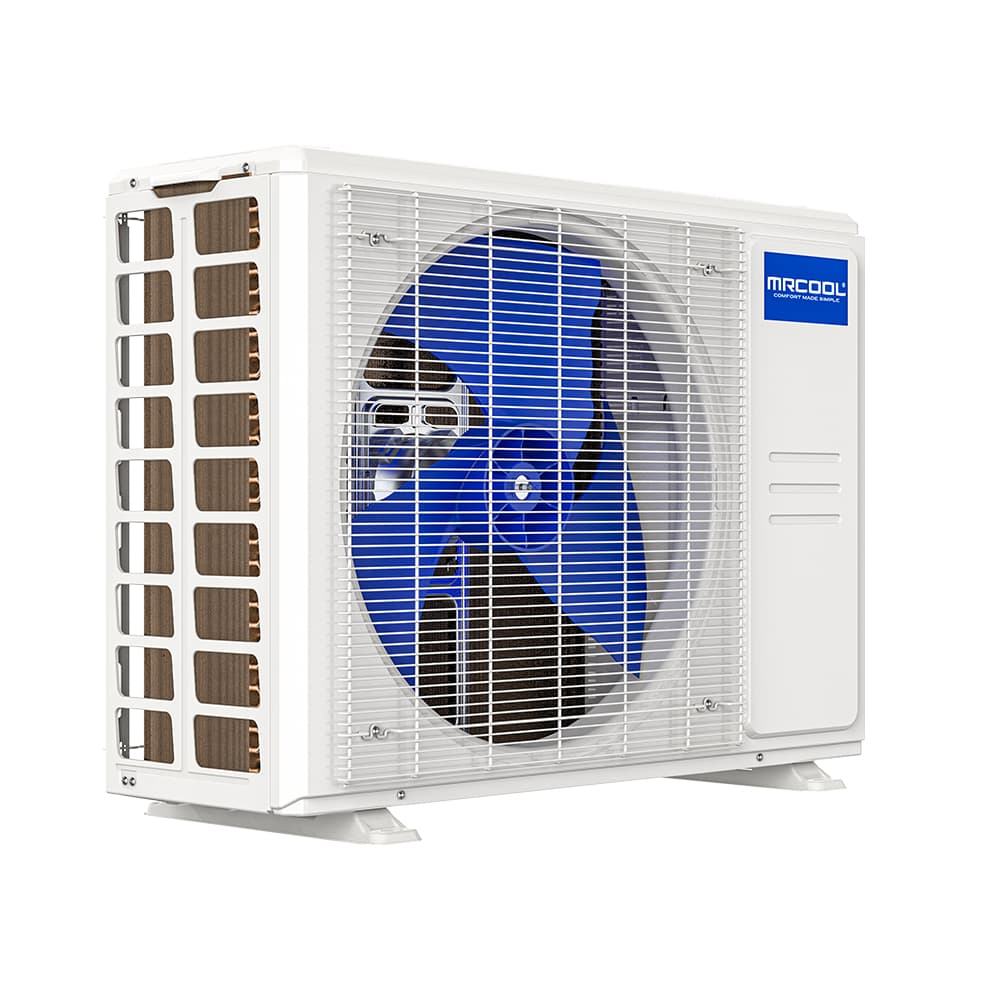

Outdoor Condenser — included
MrCool DIY 4th Gen Single-Zone 18k Condenser 230V
Sold separately for $1,432
View this unit's full specs
Indoor Air Handler — included
MRCOOL® E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler 208-230V/60Hz
Sold separately for $724
View this unit's full specs25 ft Quick Connect® Line Set
Pre-charged copper lines — in the box, no vacuum pump needed
DIYPro® Cable
Armored communication & power cable
Wireless Remote
Handheld remote with Follow Me sensing
Key Specifications
22.7
SEER2 Rating
18000BTU
Cooling Capacity
Up to 750sq ft
Coverage Area
208-230V
Voltage
44.5/37/31dBA
Noise Level
MRCOOL® E Star DIY 4th Gen 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 18,000 BTU
The MRCOOL® E Star DIY 4th Gen 18k BTU Ductless Mini-Split Heat Pump Complete System 208-230V/60Hz delivers 18,000 BTU of cooling and heating capacity (1.5-ton class), sized for spaces up to 750 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit handles medium primary rooms, master suites with attached bath, converted garages, and workshops. If your space includes a sunny west-facing wall or a finished bonus room above it, lean toward the upper end of the coverage range.
Efficiency & Operating Cost
This unit is rated at 22.7 SEER2 and 12.6 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 22.7 puts this in the premium efficiency tier. For heating performance it carries a 9.8 HSPF2 rating, which translates to roughly 300–350% heating efficiency versus resistance electric — one kilowatt-hour of electricity moves three kWh of heat into the space at mild outdoor temperatures. Running the unit 8 hours a day at full load draws roughly 190 kWh/month — about $30/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time. ENERGY STAR certification makes this SKU eligible for federal tax credits (25C in 2026, up to 30% / $2,000 for qualifying heat pumps) and most state/utility rebate programs — check your state page for specific amounts.
Cold & Hot Weather Operating Range
This system produces rated heating capacity down to -1375°F ambient, putting it in hyper-heat territory suitable for northern climates where ducted gas is the usual backup. On the cooling side the compressor runs down to -13122°F outdoor ambient, useful for server rooms, grow rooms, and any space that needs year-round cooling. The inverter-driven compressor modulates between roughly 30% and 110% of rated capacity instead of cycling on/off, which both extends runtime at extreme temperatures and holds tighter setpoints (±0.5°F) versus ±2–3°F on fixed-speed units.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 18A with a maximum overcurrent protection of 30A. Wire the outdoor unit with 10 AWG copper on a dedicated 30A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — DIY-Friendly
This DIY 4th Gen E STAR system ships with a pre-charged Quick Connect line set — no HVAC license, no vacuum pump, no refrigerant gauges. The pre-charged fittings use a hand-tightened mechanical seal that a homeowner completes in 15 minutes per connection. Typical install time from unboxing to first cool air is 4–8 hours for a single-head system. The system supports line set lengths up to 75ft; longer runs are available as accessory kits. Plan the shortest practical route — every 10ft of line set adds roughly 2% capacity loss. Ships with R-410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Sound Level & Comfort Features
Operating sound level ranges from 31 dB(A) on low to 44.5 dB(A) on high — the low end is whisper-quiet, below a normal conversation (60 dB) and comparable to a library reading room. Quiet mode caps fan speed and compressor rpm for an extra 2–3 dB drop in sound output.
Warranty & Certifications
When you register your unit within 60 days of purchase you get Limited Lifetime Compressor on the compressor through MrCool's registered warranty program. Unregistered coverage drops to 5-year Parts / 7-year Compressor — registration takes 3 minutes at mrcool.com and is the highest-ROI post-purchase step you can take. AHRI certified and UL/ETL listed for North American electrical safety — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Mini-Split with remote control included.
Product Details
The MRCOOL® 4th Generation DIY 18K BTU, 22 SEER Ductless Heat Pump system offers a complete solution to your home’s heating and cooling needs. This system can heat & cool an area up to 750 sq. ft and is capable of an Energy Star certified, 22 SEER efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged 25 ft. line set, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MrCool system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MrCool stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.
Specifications
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| SEER2 Rating | 22.7 |
| HSPF2 | 9.8 |
| Voltage | 208-230 V |
| Refrigerant | R-410A |
| Noise Level | 44.5/37/31 dBA |
| Coverage Area | Up to 750 sq ft |
| Zone Capacity | 1 zones |
| Max Line Set | 75 ft |
| SEER Rating | 22 |
| EER2 | 12.6 |
| Tonnage | 1.5 Ton |
| Airflow | 465.29/361.76/304.12 CFM |
| Phase | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Charge | 56.44 oz |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
Features
- Up to 22.7 SEER2
- Gold Fin® condenser: corrosion-resistant coastal living - don't worry, our condenser is built to resist long term corrosion
- Variable-speed DC inverter compressor technology cuts operating costs
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
