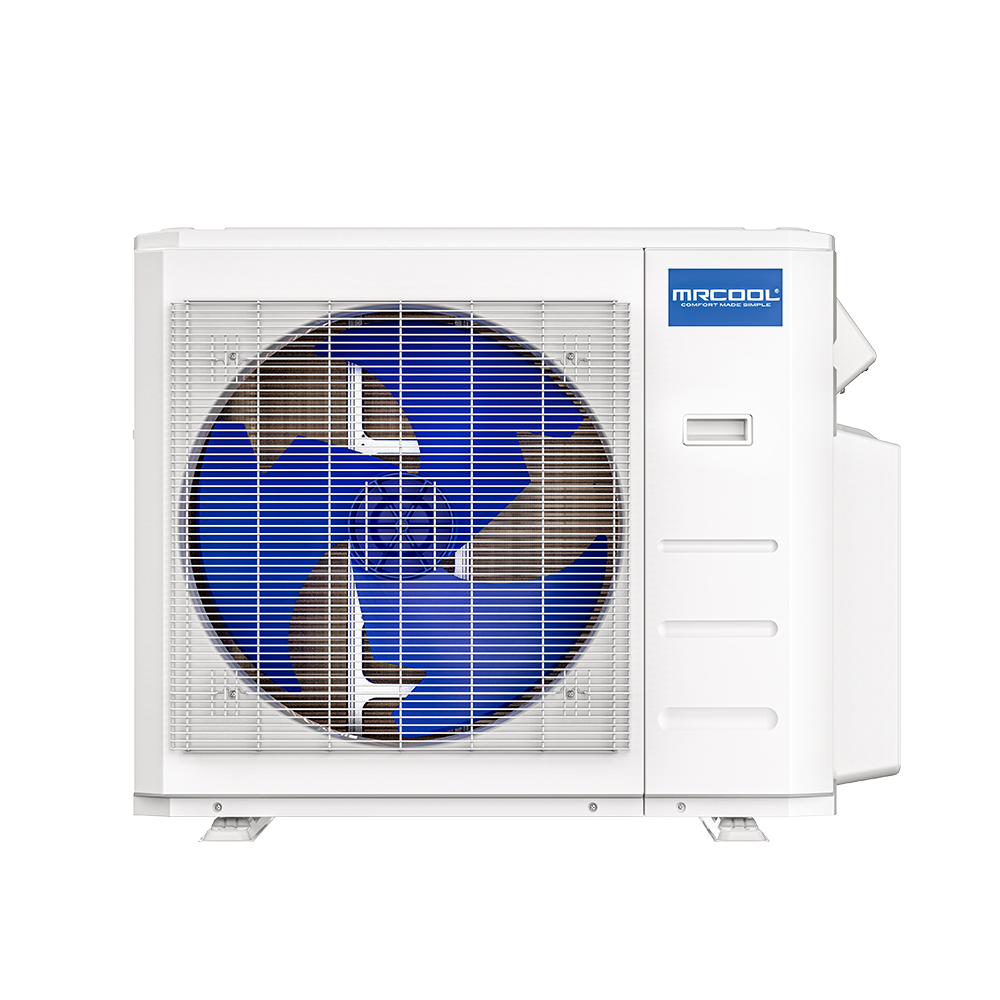

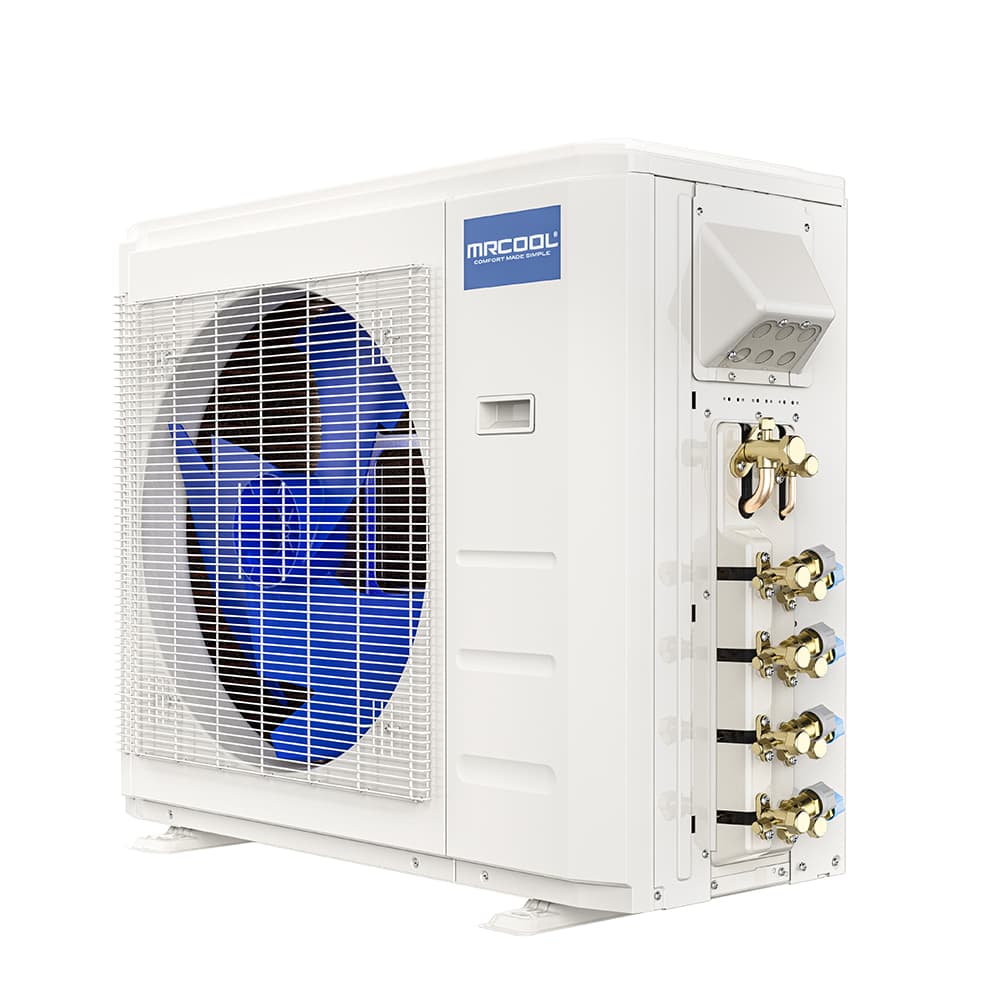

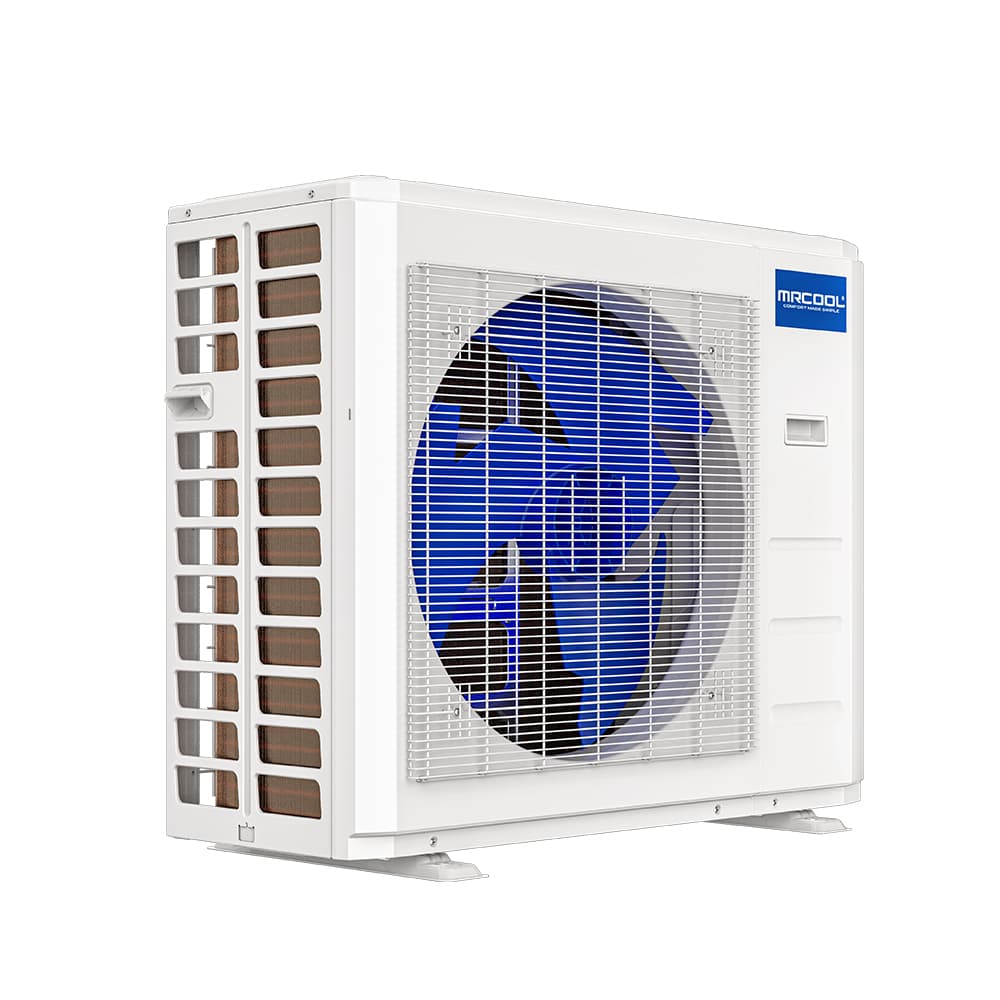

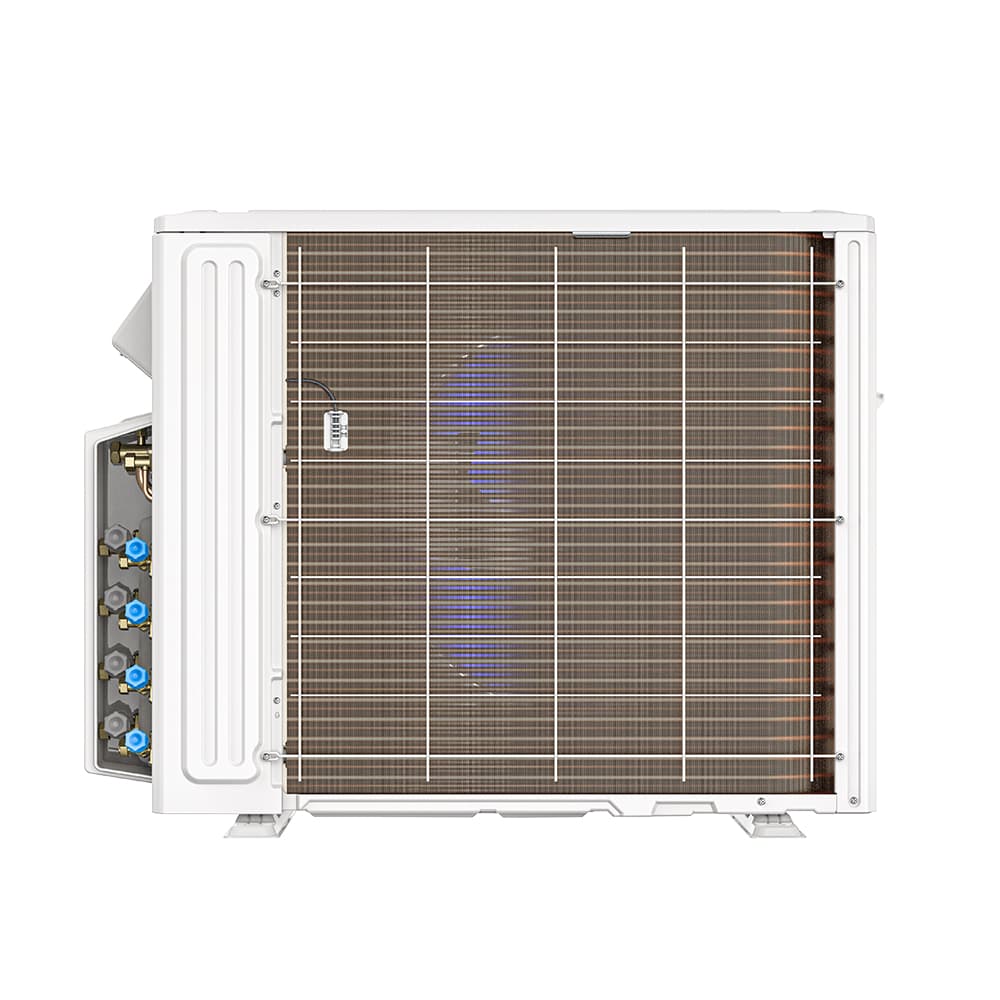

MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v
Component — Not a Complete System
This is the outdoor unit only. To run, you also need a matching indoor air handler and a refrigerant line set. Looking for the complete system instead? Browse complete 26,000 BTU systems.
SKU DIY-MULTI4-27HP230D-O
With Incentives
Save up to $1,25523 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
MrCool DIY factory warranty — register after install to activate the full coverage tiers.
Sizing Help
Not sure if 26K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v
What's in the Box
Here's what you'll receive with your order
MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Spl...
As described
Key Specifications
23
SEER2 Rating
26000BTU
Cooling Capacity
208/230V
Voltage
61dBA
Noise Level
4
Zone Capacity
MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 26,000 BTU
The MRCOOL® 27k DIY 5th Generation 4 Zone Multi-Zone Mini-Split Condenser 230v delivers 26,000 BTU of cooling and heating capacity (2.25-ton class), sized for spaces up to 1,500 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit handles medium primary rooms, master suites with attached bath, converted garages, and workshops. If your space includes a sunny west-facing wall or a finished bonus room above it, lean toward the upper end of the coverage range. As a multi-zone system this condenser supports up to 4 independent indoor heads, each with its own thermostat and mode — so bedrooms can cool while the living room heats, on one outdoor unit.
Efficiency & Operating Cost
This unit is rated at 23 SEER2 and 12 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 23 puts this in the premium efficiency tier. For heating performance it carries a 9.5 HSPF2 rating, which translates to roughly 300–350% heating efficiency versus resistance electric — one kilowatt-hour of electricity moves three kWh of heat into the space at mild outdoor temperatures. Running the unit 8 hours a day at full load draws roughly 271 kWh/month — about $43/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time. ENERGY STAR certification makes this SKU eligible for federal tax credits (25C in 2026, up to 30% / $2,000 for qualifying heat pumps) and most state/utility rebate programs — check your state page for specific amounts.
Power & Electrical Requirements
Power requirement: 208/230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 23A with a maximum overcurrent protection of 25A. Wire the outdoor unit with 10 AWG copper on a dedicated 25A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — DIY-Friendly
This DIY 5th gen Multi-Zone Mini-splits system ships with a pre-charged Quick Connect line set — no HVAC license, no vacuum pump, no refrigerant gauges. The pre-charged fittings use a hand-tightened mechanical seal that a homeowner completes in 15 minutes per connection. Typical install time from unboxing to first cool air is 4–8 hours for a single-head system. The system supports line set lengths up to 221.4ft; longer runs are available as accessory kits. Plan the shortest practical route — every 10ft of line set adds roughly 2% capacity loss. Ships with R-454B refrigerant. R-454B is the EPA 2025-compliant low-GWP replacement for R-410A, required for new-manufacture equipment — lower global-warming footprint without an efficiency penalty.
Sound Level & Comfort Features
Rated sound output is 61 dB(A) at full operation. Quiet mode caps fan speed and compressor rpm for an extra 2–3 dB drop in sound output.
Warranty & Certifications
Manufacturer warranty: 5 on parts, 7 on the compressor. AHRI certified and UL/ETL listed for North American electrical safety — required for most utility rebate and tax credit programs.
Product Details
If you’re in need of comfort, our new 5th Generation MRCOOL® DIY® 27k BTU Multi-Zone Ductless Mini Split Condenser is the perfect solution! The acronym in the name is true - you can install this system on your own, without the assistance of an HVAC professional! You’ll save money in more ways than one, too, due to the incredible efficiency of this system, which attains a SEER2 rating of 23 and a HSPF2-4 rating of 9.5. This condenser in particular is able to support up to 4 air handlers, meaning it can provide heat and air conditioning to four separate spaces equalling a total of 1,000 to 1,200 square feet. This system is unique because it utilizes special, patented Quick Connect® line sets that are pre-charged with R-454B, which is a newer refrigerant that allows the system to be even more sustainable and efficient than its previous generation. These line sets essentially link to the fittings of the condenser and the air handler, making the installation process a breeze. These line sets are sold separately. Once installed, this condenser will be able to do more than you expect! Our SmartHVAC app gives you the opportunity to integrate the system with your phone and Amazon Alexa or Google Home, which will let you control your comfort using just your voice. The app also gives you the ability to customize your comfort with a range of features, from setting schedules to monitoring the system’s energy use. You deserve to have your comfort meet your standards, and this unit can do that for you. Should something happen to the system, we’ve got your back. The DIY® series boasts one of the foremost warranties in the HVAC industry - a 5 year parts warranty, a 7 year compressor warranty, and a Limited Lifetime Replacement warranty if you enroll in the MRCOOL® Care Program. Get the best for your home and install a DIY®!
Specifications
| Cooling Capacity | 26,000 BTU |
| Heating Capacity | 26,000 BTU |
| SEER2 Rating | 23 |
| HSPF2 | 9.5 |
| Voltage | 208/230 V |
| Refrigerant | R-454B |
| Noise Level | 61 dBA |
| Zone Capacity | 4 zones |
| Max Line Set | 221.4 ft |
| EER2 | 12 |
| Tonnage | 2.25 Ton |
| Phase | 1 |
| Refrigerant Type | R-454B |
| Refrigerant Charge | 84.66 oz |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 |
Features
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
