EasyPro 5th Generation 24k BTU 230V Air Handler
Component — Not a Complete System
This is the indoor unit only. To run, you also need a matching outdoor condenser and a refrigerant line set. Looking for the complete system instead? Browse complete 24,000 BTU systems.
SKU EZPRO-24-HP-WMAH-230D-O
Customize it — compatible add-ons only
Ships with the 16 ft pre-charged Fast Connection line set.
Clean channel for the lines running down your exterior wall.
Tool kit, hole saw, and wrench — everything the self-install calls for.
Maintenance kit and coil cleaner keep efficiency (and the warranty) healthy.
Sizing Help
Not sure if 24K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
EasyPro 5th Generation 24k BTU 230V Air Handler
What's in the Box
Here's what you'll receive with your order

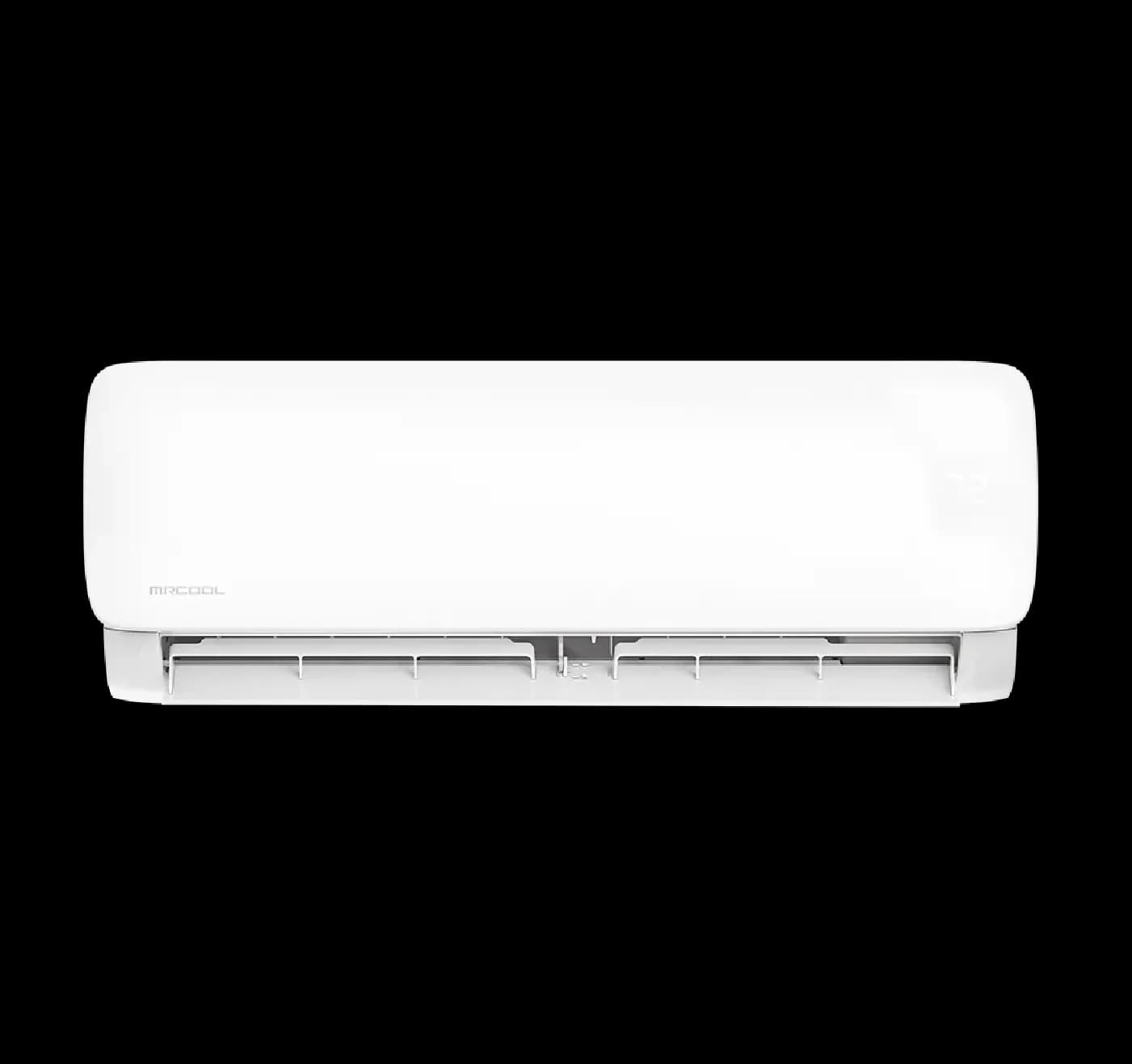

Wall-Mount Air Handler
Indoor ductless mini-split unit
Wireless Remote Control
Handheld remote with temperature control
Mounting Plate & Hardware
Wall mounting bracket and screws
Owner Manual
Installation and operation guide
Key Specifications
24000BTU
Cooling Capacity
1050sq ft
Coverage Area
208/230V
Voltage
40dBA
Noise Level
25000BTU
Heating Capacity
EasyPro 5th Generation 24k BTU 230V Air Handler — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 24,000 BTU
The EasyPro 5th Generation 24k BTU 230V Air Handler delivers 24,000 BTU of cooling and heating capacity (2-ton class), sized for spaces up to 1,050 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit handles medium primary rooms, master suites with attached bath, converted garages, and workshops. If your space includes a sunny west-facing wall or a finished bonus room above it, lean toward the upper end of the coverage range.
Power & Electrical Requirements
Power requirement: 208/230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 3A with a maximum overcurrent protection of 15A. Wire the outdoor unit with 14 AWG copper on a dedicated 15A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — DIY-Friendly
This EasyPro 5th Gen system ships with a pre-charged Quick Connect line set — no HVAC license, no vacuum pump, no refrigerant gauges. The pre-charged fittings use a hand-tightened mechanical seal that a homeowner completes in 15 minutes per connection. Typical install time from unboxing to first cool air is 4–8 hours for a single-head system.
Sound Level & Comfort Features
Operating sound level ranges from 21.5 dB(A) on low to 51.5 dB(A) on high — the low end is whisper-quiet, below a normal conversation (60 dB) and comparable to a library reading room. The indoor blower offers 5 fan speeds plus auto mode, letting you trade airflow for quiet operation in bedrooms while running louder in living areas. Sleep mode automatically raises cooling setpoint 1–2°F over 7 hours to match the body's natural temperature drop and cut overnight energy use.
Warranty & Certifications
Manufacturer warranty: 1 Year on parts, 2 Years on the compressor. AHRI certified and UL/ETL listed for North American electrical safety — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Mini-Split Air Handler with remote control included.
Product Details
The MRCOOL® EASY PRO™ Mini-Split Air Handler is an affordable and user-friendly solution for heating and cooling spaces up to 1,050 square feet, making it perfect for larger rooms, open office areas, or versatile home applications. As MRCOOL’s most budget-friendly unit, the EASY PRO™ air handler is designed for easy, DIY installation without the need for professional assistance. The EASY PRO™ air handler, which is a very efficient and convenient option, provides seamless and dependable operation. With WiFi connectivity, you can adjust and monitor temperature settings from your smartphone, while Active Clean Technology and simple-to-maintain filters help keep indoor air fresh. In the event of a power outage, the Auto Restart function restores operation automatically, and the Sleep Function adjusts temperature settings overnight to save energy while enhancing comfort. Operating at a Whisper Quiet level, the EASY PRO™ is perfect for maintaining a tranquil environment, ideal for both home and work settings. Built to handle extreme conditions, it offers Low Ambient Cooling down to 5°F, making it suitable for spaces requiring year-round cooling, such as server rooms or greenhouses. Backed by a 2-year compressor warranty and a 1-year parts warranty, the MRCOOL® EASY PRO™ air handler combines affordability, convenience, and reliability in an easy-to-install package. Experience comfort made easy, anytime and anywhere!
Specifications
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 25,000 BTU |
| Voltage | 208/230 V |
| Noise Level | 40 dBA |
| Coverage Area | 1050 sqft sq ft |
| Tonnage | 2 Ton |
| Airflow | 729.9 / 547.4 / 400.2 / 329.6 / / CFM |
| Phase | 1 |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
Features
- Easy DIY installation
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Includes features such as timer mode, refrigerant leakage detection, and more
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
- R-454B refrigerant
- AHRI certified
- NEEP ccASHP Listed
- CEE Tier1 - North
Frequently Asked Questions
Everything you need to know about this product
What size room will the EasyPro 5th Generation 24k BTU 230V Air Handler cool?
Can I install this myself without an HVAC license?
What electrical circuit do I need for installation?
How fast does HVACZAR ship this unit?
What if it arrives damaged or I change my mind?
What is the warranty on the EasyPro 5th Generation 24k BTU 230V Air Handler?
How long does shipping take?
What size room does 24,000 BTU cover?
Do you offer returns?
How can I pay?
