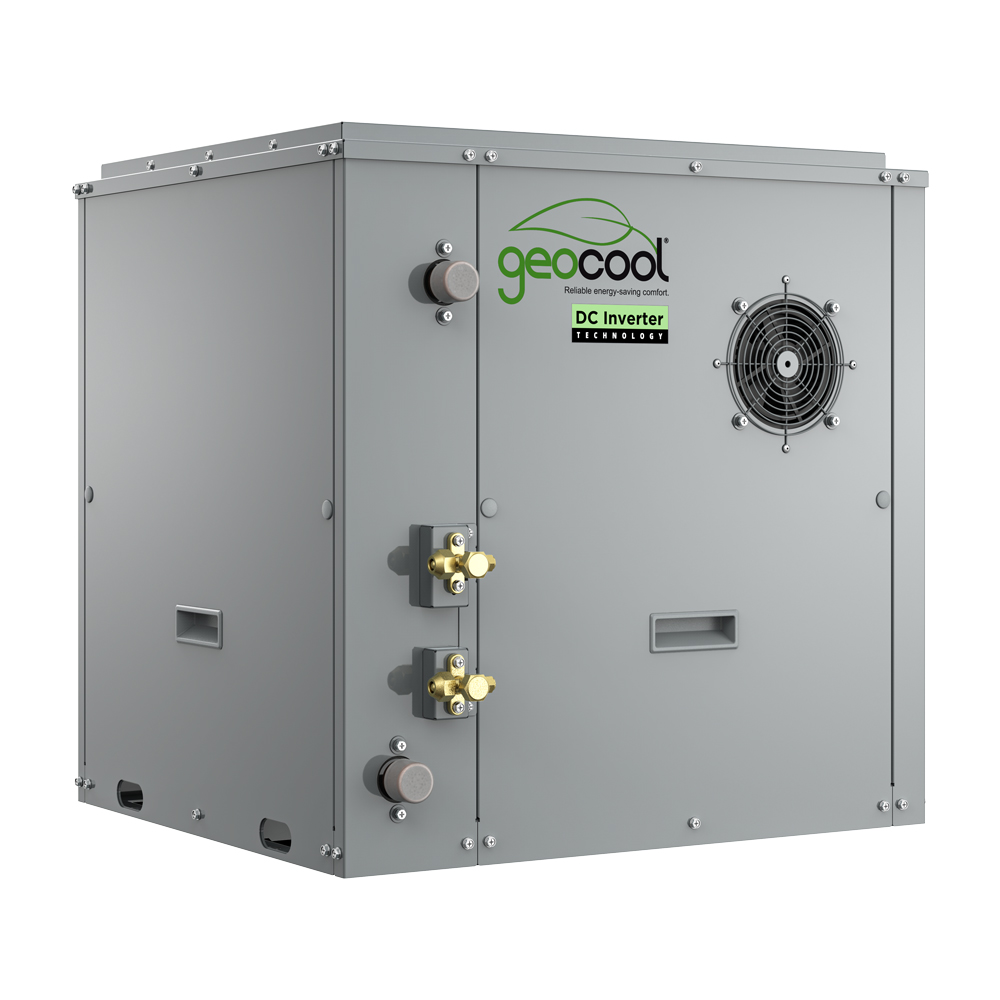

GeoCool 60K BTU 5T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor
SKU GCSHPM060IN
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
Sizing Help
Not sure if this system is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
GeoCool 60K BTU 5T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor
What's in the Box
Here's what you'll receive with your order
GeoCool 60K BTU 5T Multi Positional 230V 1-Phase 60Hz DC ...
As described
Key Specifications
Up to 62000BTU
Cooling Capacity
208 / 230V
Voltage
Up to 55600BTU
Heating Capacity
GeoCool 60K BTU 5T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 62,000 BTU
The GeoCool 60K BTU 5T Multi Positional 230V 1-Phase 60Hz DC Inverter Compressor delivers 62,000 BTU of cooling and heating capacity, sized for spaces 2,000+ sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit is typically used for open-plan main floors, large garages, pole barns, finished basements, and small commercial bays. For homes with vaulted ceilings, heavy sun exposure, or poor insulation, plan on ~20% more BTU per square foot than the nominal coverage.
Power & Electrical Requirements
Power requirement: 208 / 230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 26A with a maximum overcurrent protection of 35A. Wire the outdoor unit with 8 AWG copper on a dedicated 35A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — Professional Install
This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system. Ships with R-410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Warranty & Certifications
Manufacturer warranty: 10 years on parts. AHRI certified and UL/ETL listed for North American electrical safety — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Geothermal Heat Pump Compressor.
Product Details
Prepare to enjoy impressive performance and exceptional energy efficiency with the MRCOOL® Geocool® Geothermal Split System Compressor. With an all DC inverter system and a high precision electronic expansion valve, you can expect a much quieter, stable, and energy-saving experience with more accurate temperature control than with standard heating and cooling systems. The open loop water-to-air system’s superb energy efficiency boasts up to 70 EER, significantly lowering utility costs. Installation is easy with the compatible MRCOOL® Geocool® No-Vac® Line Set. The system features multiple flexible installation options including vertical, horizontal, and split configurations. This makes this system an excellent solution if your home has space constraints or requires modification to a different air outlet method. The compressor features multiple protections against potential damage along with a reliable and durable build and finish. The co-axial copper-nickel heat exchanger makes the system suitable for salt solution and lower water quality, and improves corrosion resistance and unit reliability. With a cooling noise level as low as 58dBA and heating noise level as low as 60dBa, you’re able to enjoy superior comfort without any distraction. For peace of mind, this MRCOOL® Geocool® Geothermal Split System Compressor offers a 10-year parts warranty as well as a 5-year limited labor warranty.
Specifications
| Voltage | 208 / 230 V |
| Refrigerant | R-410A |
| Cooling Capacity | Up to 62000 BTU |
| Heating Capacity | Up to 55600 BTU |
| Phase | 1 |
| Refrigerant Type | R-410A |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
Features
- Up to 70 EER
- Any way you want it - Multi-Position Installation capabilities
