Olympus Hyper Heat 17,000 BTU Ductless Mini Split Air Conditioner and Heat Pump Air Handler - 230V/60Hz
SKU O-HH-18-HP-230B
With Incentives
Save up to $1,132Hyper Heat cold-climate model — automatically meets CEE Tier 2. Find your state's rebate
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
Sizing Help
Not sure if 18K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
Olympus Hyper Heat 17,000 BTU Ductless Mini Split Air Conditioner and Heat Pump Air Handler - 230V/60Hz
What's in This System
The actual units this bundle ships with — pictured individually, priced as one system.
Outdoor Condenser — included

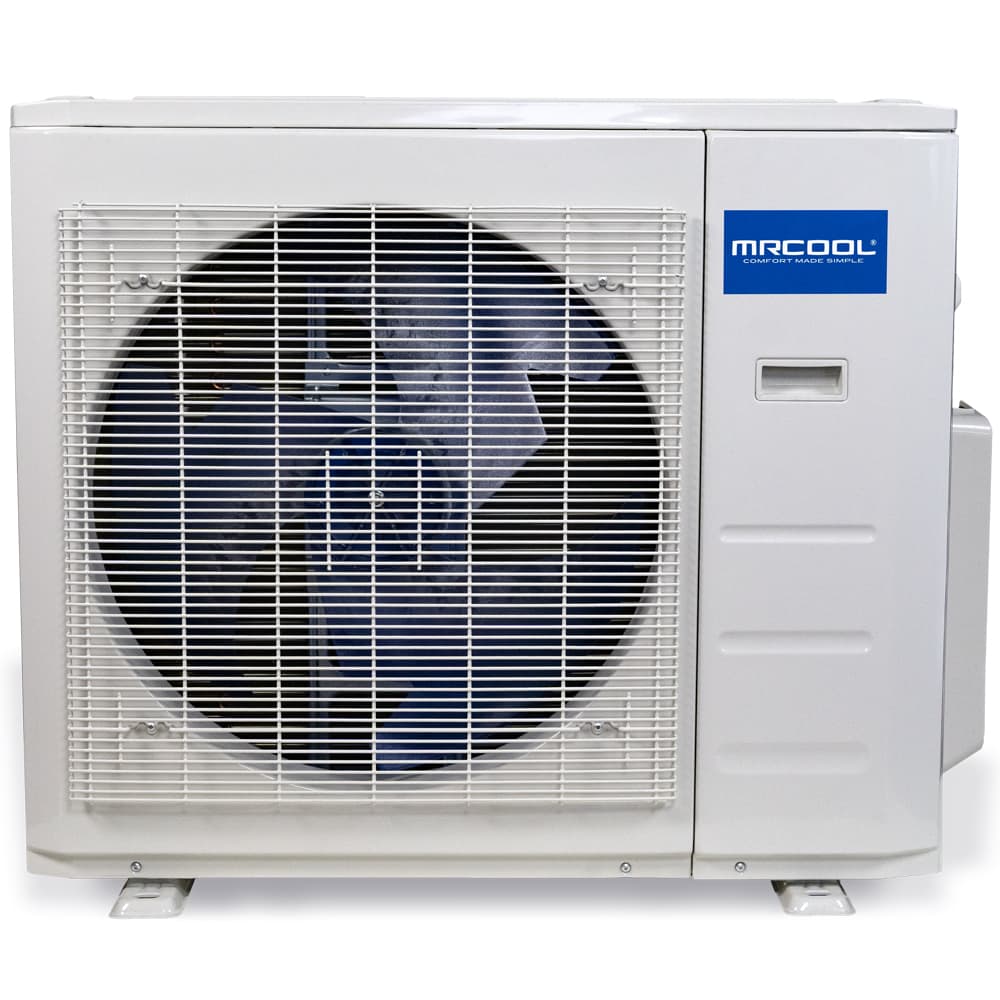

Olympus Hyper Heat 18,000 BTU 1.5 Ton Ductless Mini Split Heat Pump Condenser - 230V/60Hz
Sold separately for $1,308
View this unit's full specsIndoor Air Handler — included

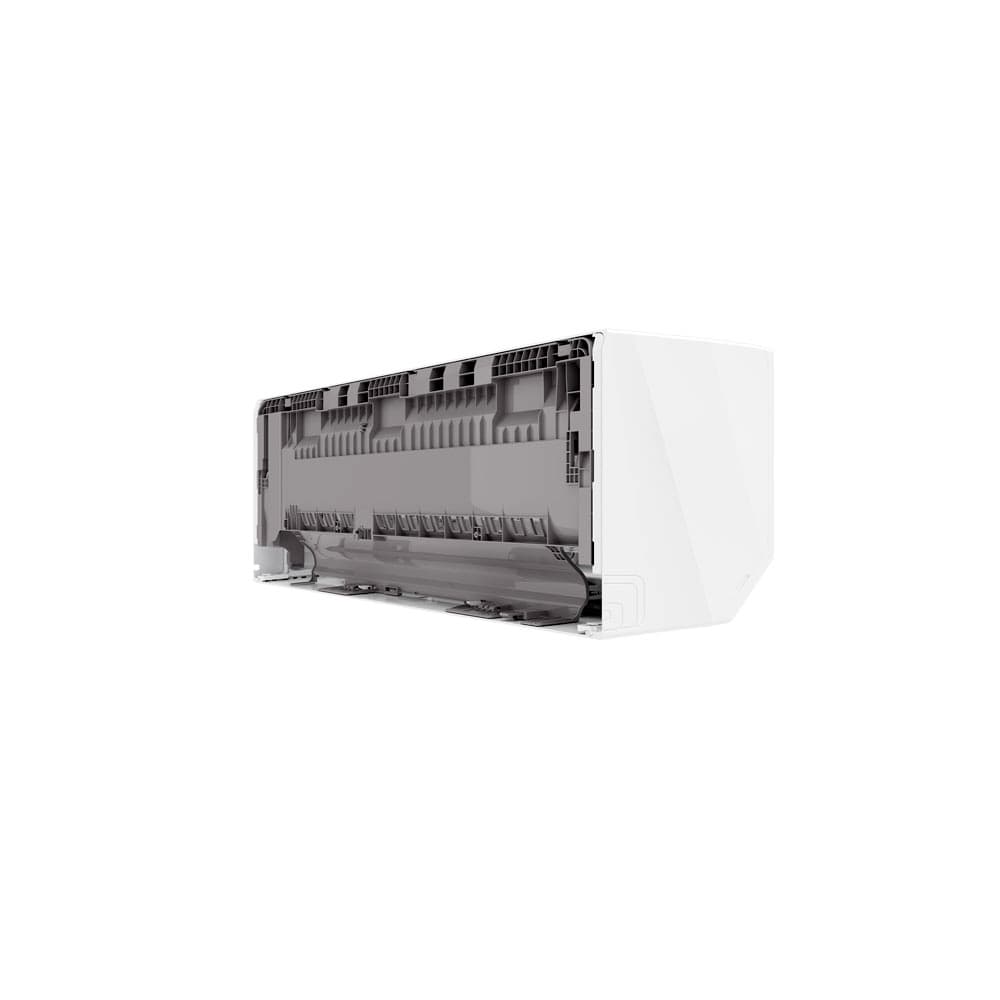

Olympus 18,000 BTU 1.5 Ton Ductless Mini-Split Wall Mounted Air Handler - 230V/60Hz
Sold separately for $578
View this unit's full specsWireless Remote
Handheld remote control
Heads up: a line set is not included with this system — add a compatible one from the add-ons above so it arrives install-ready.
Key Specifications
21.5
SEER2 Rating
18000BTU
Cooling Capacity
208-230V
Voltage
42dBA
Noise Level
1
Zone Capacity
Olympus Hyper Heat 17,000 BTU Ductless Mini Split Air Conditioner and Heat Pump Air Handler - 230V/60Hz — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 18,000 BTU
The Olympus Hyper Heat 17,000 BTU Ductless Mini Split Air Conditioner and Heat Pump Air Handler - 230V/60Hz delivers 18,000 BTU of cooling and heating capacity, sized for spaces up to 900 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit handles medium primary rooms, master suites with attached bath, converted garages, and workshops. If your space includes a sunny west-facing wall or a finished bonus room above it, lean toward the upper end of the coverage range.
Efficiency & Operating Cost
This unit is rated at 21.5 SEER2 and 12.5 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 21.5 puts this in the premium efficiency tier. For heating performance it carries a 11.3 HSPF2 rating, which translates to roughly 300–350% heating efficiency versus resistance electric — one kilowatt-hour of electricity moves three kWh of heat into the space at mild outdoor temperatures. Running the unit 8 hours a day at full load draws roughly 201 kWh/month — about $32/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time. ENERGY STAR certification makes this SKU eligible for federal tax credits (25C in 2026, up to 30% / $2,000 for qualifying heat pumps) and most state/utility rebate programs — check your state page for specific amounts.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 3A with a maximum overcurrent protection of 25A. Wire the outdoor unit with 10 AWG copper on a dedicated 25A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — Professional Install
This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system. Ships with R-410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Sound Level & Comfort Features
Operating sound level ranges from 24 dB(A) on low to 46 dB(A) on high — the low end is whisper-quiet, below a normal conversation (60 dB) and comparable to a library reading room. Sleep mode automatically raises cooling setpoint 1–2°F over 7 hours to match the body's natural temperature drop and cut overnight energy use. Quiet mode caps fan speed and compressor rpm for an extra 2–3 dB drop in sound output.
Warranty & Certifications
When you register your unit within 60 days of purchase you get 5-year on parts and 7-year on the compressor through MrCool's registered warranty program. AHRI certified — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Mini-Split with remote control included.
Product Details
Designed to be installed by a professional, this Energy Star certified Olympus Hyper Heat 18,000 BTU Ductless Mini Split System is a great way to create a comfortable and cost-effective home. With a newly higher efficiency of 21.5 SEER and 13 HSPF, this ductless heat pump can provide both efficient and effective heating performance during extremely cold weather, as well as superior cooling during warmer months. This is a quiet and efficient system that provides steady cooling and heating year-round. With WiFi enabled control, you can expect a simpler setup, better functionality, and the ability to control the unit with the SmartHVAC app, your Amazon Alexa, or Google Assistant.
Specifications
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 18,000 BTU |
| SEER2 Rating | 21.5 |
| HSPF2 | 11.3 |
| Voltage | 208-230 V |
| Refrigerant | R-410A |
| Noise Level | 42 dBA |
| Zone Capacity | 1 zones |
| SEER Rating | Up To 21.5 |
| EER2 | 12.5 |
| Phase | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Charge | 65.2 oz |
| Liquid Line Size | 1/4 |
| Suction Line Size | 1/2 |
Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
Frequently Asked Questions
Everything you need to know about this product
What size room will the Olympus Hyper Heat 17,000 BTU Ductless Mini Split Air Conditioner and Heat Pump Air Handler - 230V/60Hz cool?
Do I need a licensed HVAC installer?
Is this unit eligible for the federal 25C tax credit?
What electrical circuit do I need for installation?
What warranty do I get?
How fast does HVACZAR ship this unit?
What if it arrives damaged or I change my mind?
What is the warranty on the Olympus Hyper Heat 17,000 BTU Ductless Mini Split Air Conditioner and Heat Pump Air Handler - 230V/60Hz?
How long does shipping take?
What size room does 18,000 BTU cover?
What is the efficiency rating?
Do you offer returns?
How can I pay?
