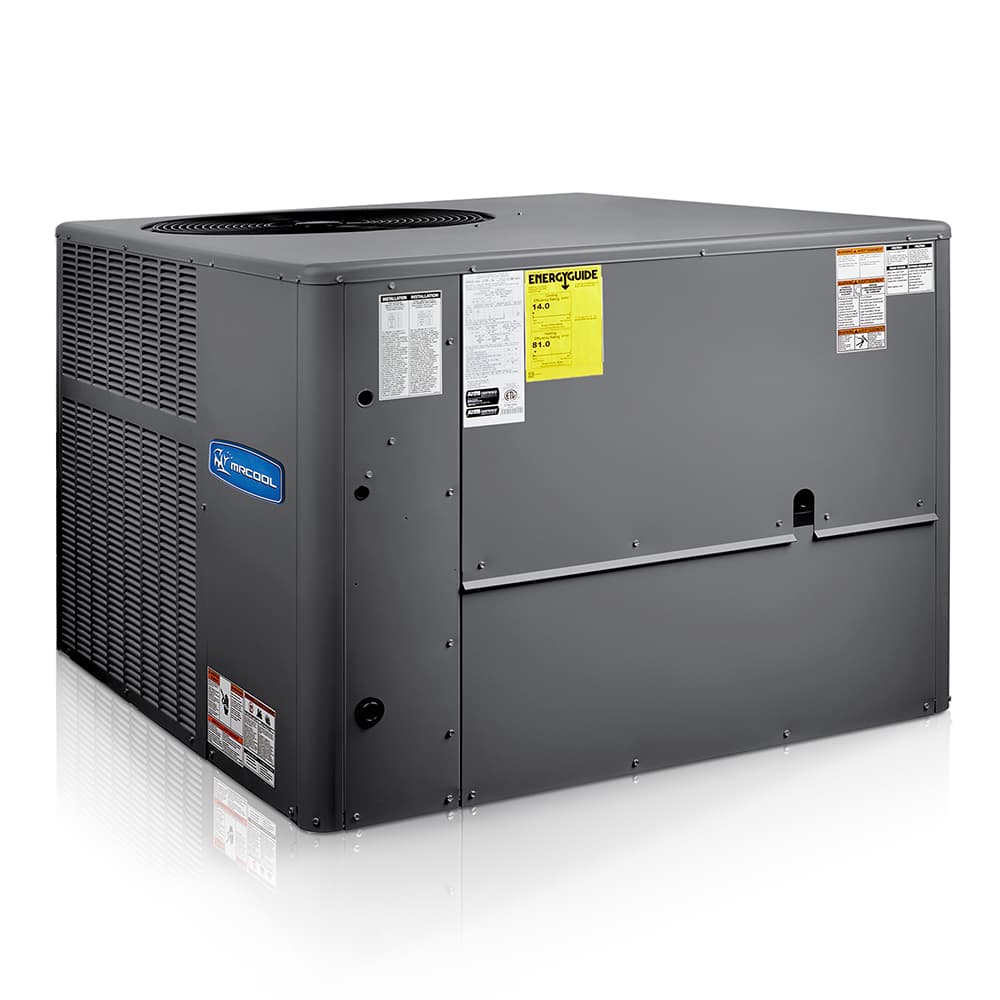

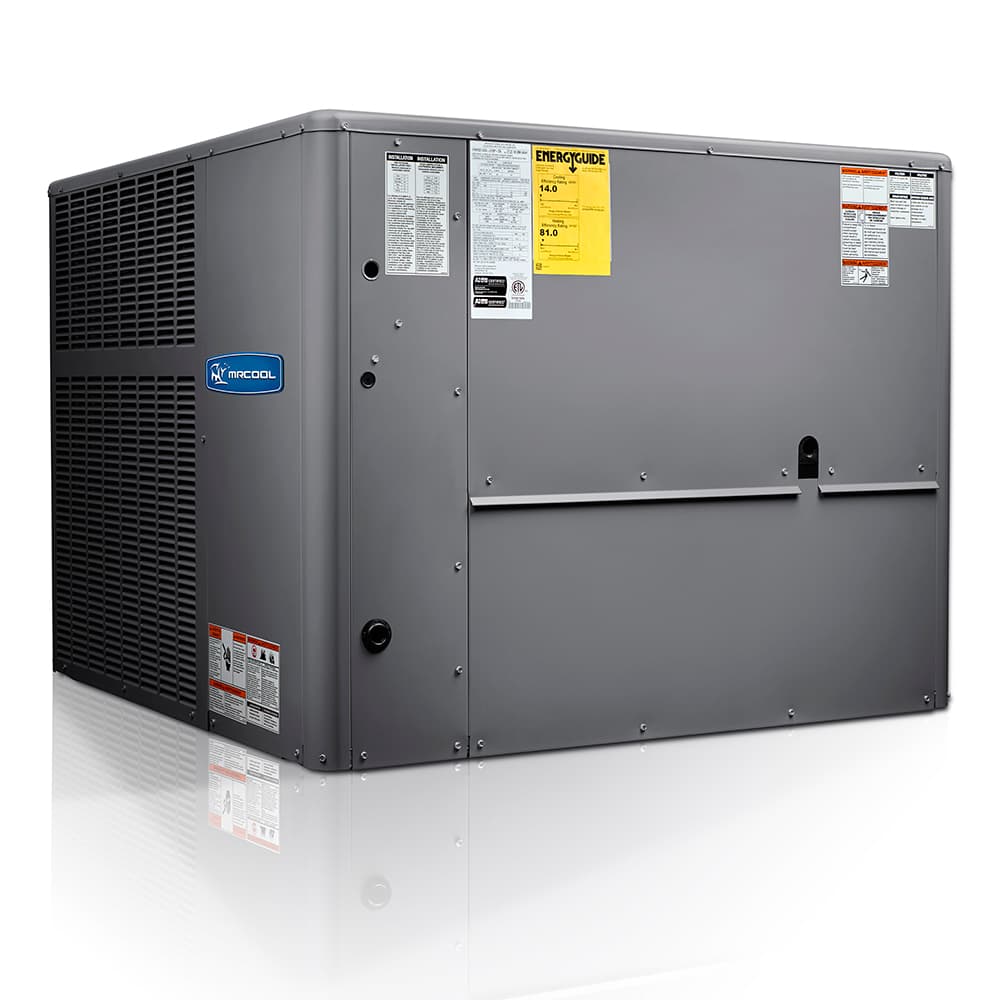

14 SEER 2 Ton Louvered Packaged Air Conditioner
SKU MPC241M414A
Customize it — compatible add-ons only
Packaged-unit heat strips — sized in kW by your installer.
Adapts the 14″ square supply opening to round duct — pick by application.
Required when the package unit supplies ductwork below the unit.
MRCOOL 24V smart thermostat for ducted systems — Wi-Fi control and scheduling.
Maintenance kit and coil cleaner keep efficiency (and the warranty) healthy.
Sizing Help
Not sure if 23K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
14 SEER 2 Ton Louvered Packaged Air Conditioner
What's in the Box
Here's what you'll receive with your order
14 SEER 2 Ton Louvered Packaged Air Conditioner
As described
Key Specifications
13.4
SEER2 Rating
22600BTU
Cooling Capacity
1000sq ft
Coverage Area
208-230V
Voltage
77dBA
Noise Level
14 SEER 2 Ton Louvered Packaged Air Conditioner — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 22,600 BTU
The 14 SEER 2 Ton Louvered Packaged Air Conditioner delivers 22,600 BTU of cooling and heating capacity (2-ton class), sized for spaces up to 1,000 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit handles medium primary rooms, master suites with attached bath, converted garages, and workshops. If your space includes a sunny west-facing wall or a finished bonus room above it, lean toward the upper end of the coverage range.
Efficiency & Operating Cost
This unit is rated at 13.4 SEER2 and 10.6 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 13.4 meets current federal baseline. Running the unit 8 hours a day at full load draws roughly 405 kWh/month — about $65/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time.
Cold & Hot Weather Operating Range
This system produces rated heating capacity down to 0°F ambient, strong performance for cold-climate applications where a secondary heat source isn't needed for most of winter.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 14.4A with a maximum overcurrent protection of 20A. Wire the outdoor unit with 12 AWG copper on a dedicated 20A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — Professional Install
This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system. Ships with R-410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Sound Level & Comfort Features
Rated sound output is 77 dB(A) at full operation.
What's in the Box & Compatibility
Ships as a Package AC.
Product Details
This is a brand new 2 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump).
Specifications
| Cooling Capacity | 22,600 BTU |
| SEER2 Rating | 13.4 |
| Voltage | 208-230 V |
| Refrigerant | R-410A |
| Noise Level | 77 dBA |
| Coverage Area | 1000 sq ft |
| SEER Rating | 14 |
| EER2 | 10.6 |
| Tonnage | 2 Ton |
| Airflow | 800 CFM |
| Phase | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Charge | 72 oz |
| Country of Origin | USA |
Features
- Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R-410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
