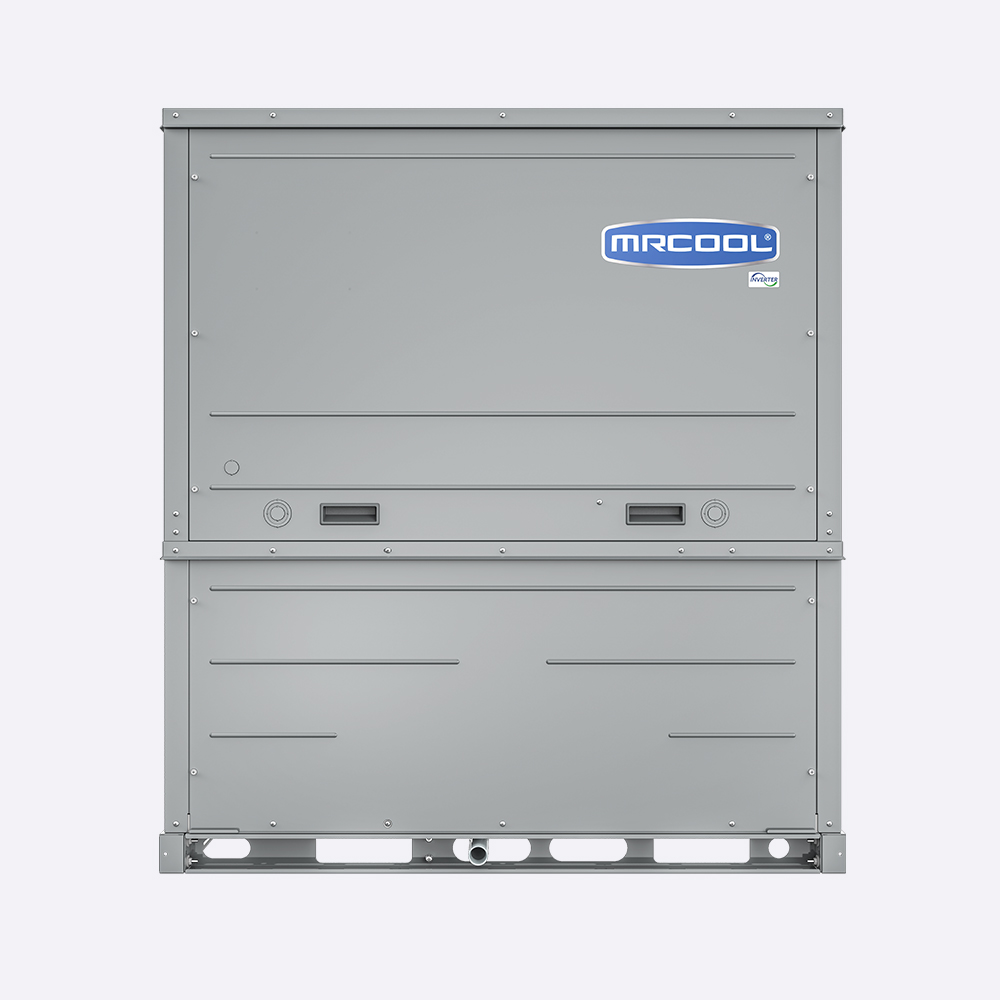

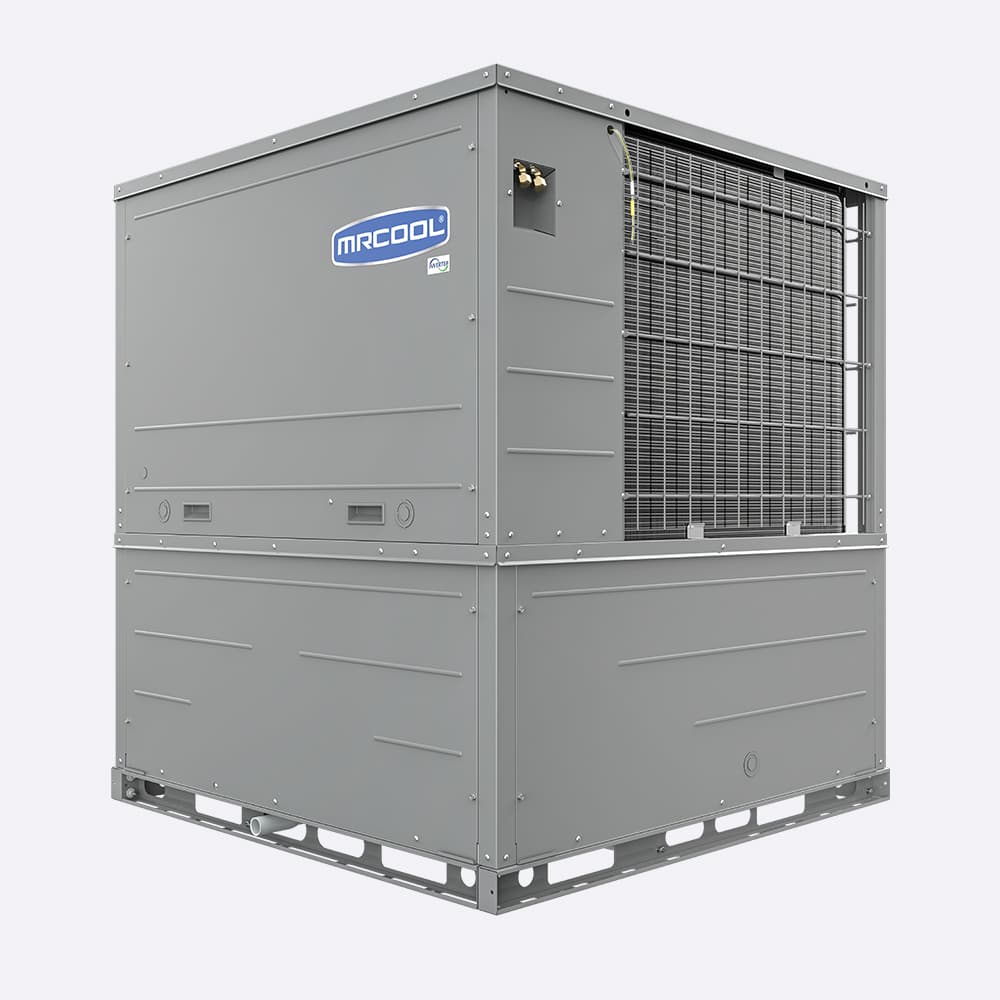

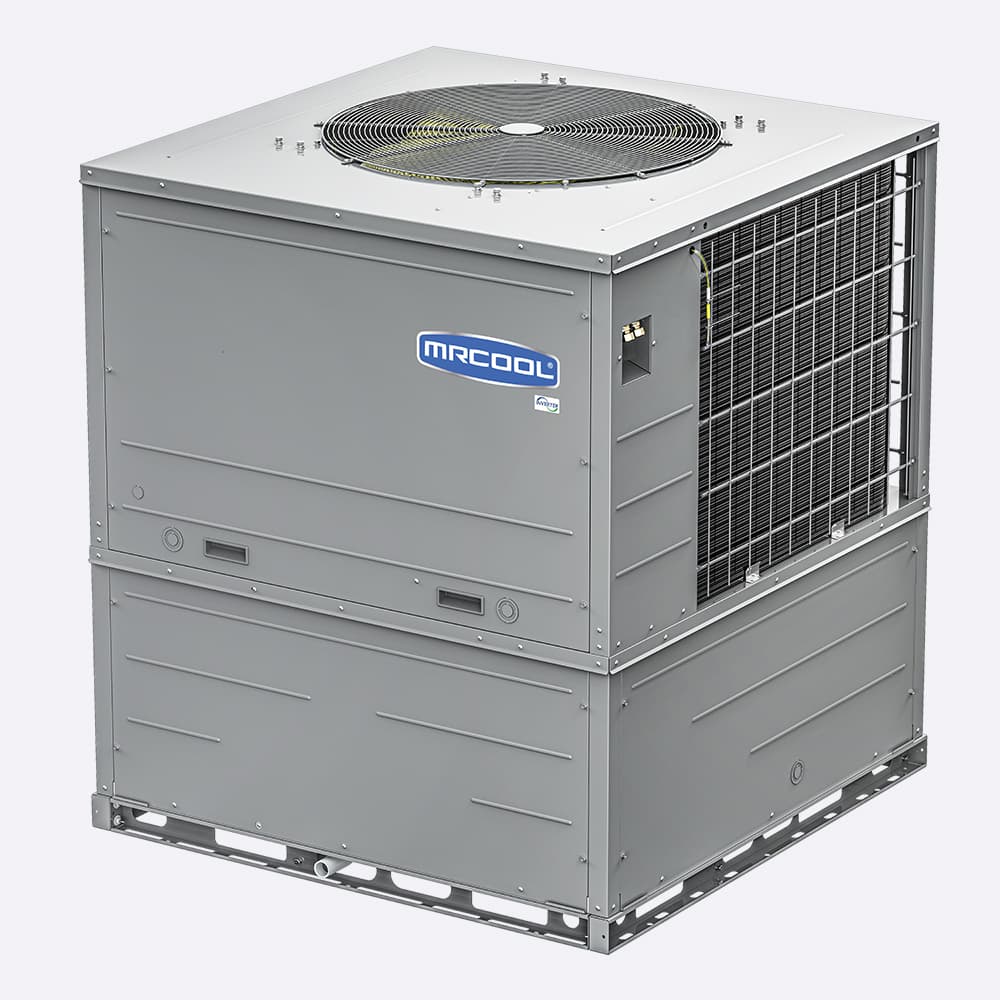

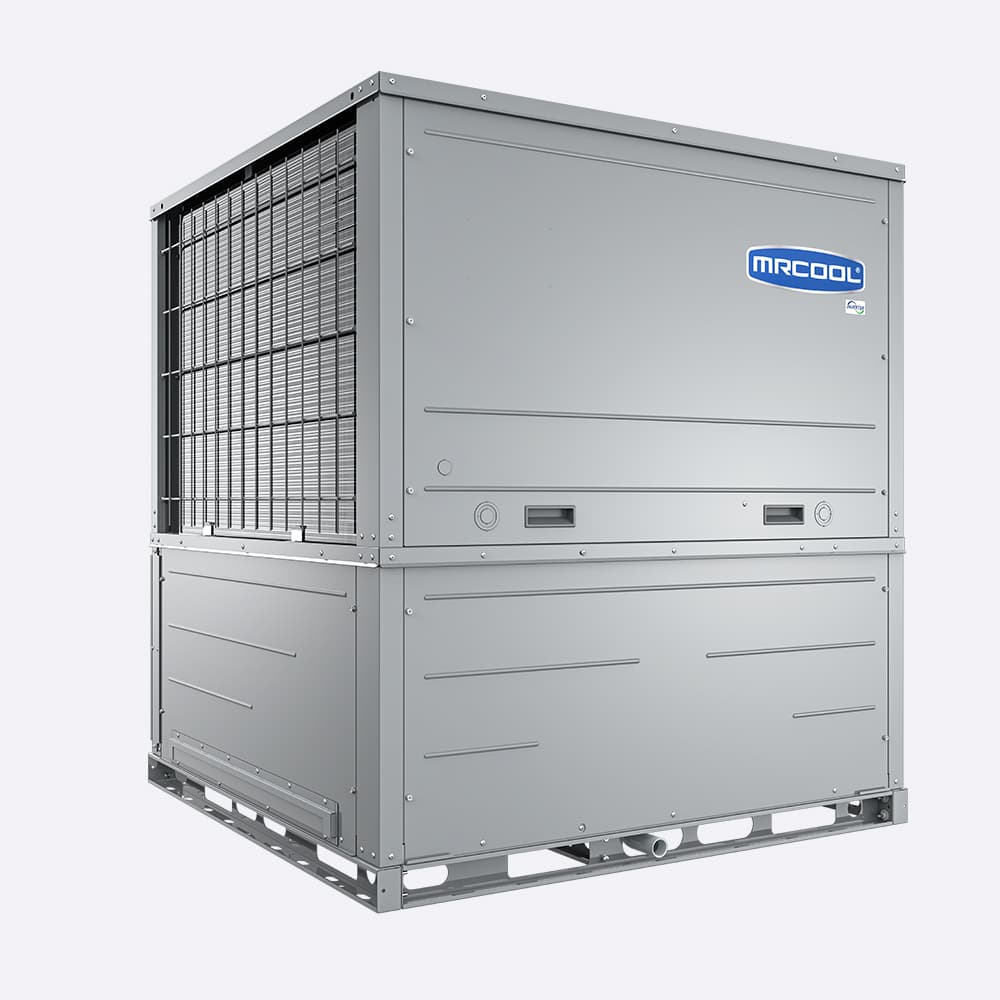

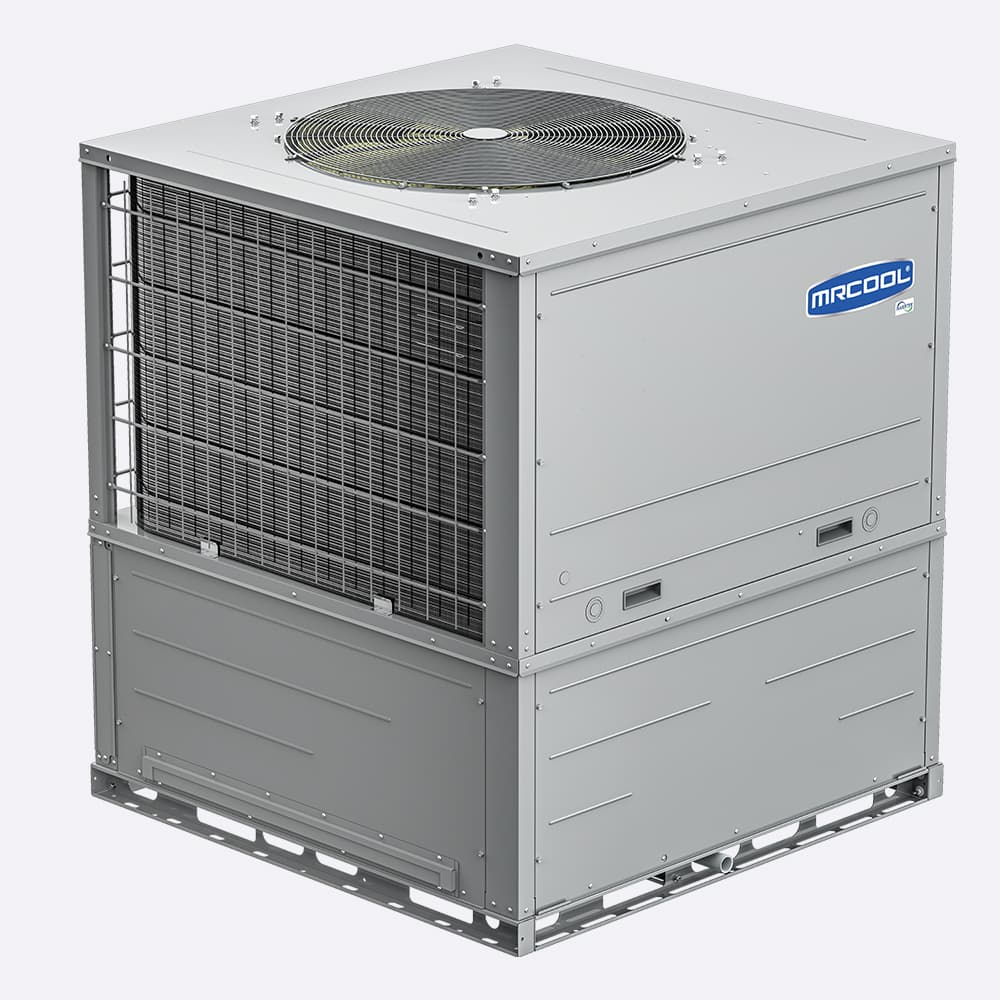

MRCOOL® 60k BTU 17 SEER2 Universal DC Inverter Packaged Heat Pump-R410A
SKU MDPH180604
With Incentives
Save up to $3,61117 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
Sizing Help
Not sure if 56K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
MRCOOL® 60k BTU 17 SEER2 Universal DC Inverter Packaged Heat Pump-R410A
What's in the Box
Here's what you'll receive with your order
MRCOOL® 60k BTU 17 SEER2 Universal DC Inverter Packaged ...
As described
Key Specifications
17
SEER2 Rating
56000BTU
Cooling Capacity
208-230V
Voltage
68dBA
Noise Level
57000BTU
Heating Capacity
MRCOOL® 60k BTU 17 SEER2 Universal DC Inverter Packaged Heat Pump-R410A — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 56,000 BTU
The MRCOOL® 60k BTU 17 SEER2 Universal DC Inverter Packaged Heat Pump-R410A delivers 56,000 BTU of cooling and heating capacity (5-ton class), sized for spaces 2,000+ sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit is typically used for open-plan main floors, large garages, pole barns, finished basements, and small commercial bays. For homes with vaulted ceilings, heavy sun exposure, or poor insulation, plan on ~20% more BTU per square foot than the nominal coverage.
Efficiency & Operating Cost
This unit is rated at 17 SEER2 and 10.6 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 17 meets modern federal minimum standards with headroom for utility rebates in most states. For heating performance it carries a 8.3 HSPF2 rating, which translates to roughly 250–300% heating efficiency versus resistance electric — one kilowatt-hour of electricity moves three kWh of heat into the space at mild outdoor temperatures. Running the unit 8 hours a day at full load draws roughly 791 kWh/month — about $126/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time. ENERGY STAR certification makes this SKU eligible for federal tax credits (25C in 2026, up to 30% / $2,000 for qualifying heat pumps) and most state/utility rebate programs — check your state page for specific amounts.
Cold & Hot Weather Operating Range
This system produces rated heating capacity down to -2275.2°F ambient, putting it in hyper-heat territory suitable for northern climates where ducted gas is the usual backup. On the cooling side the compressor runs down to 23125°F outdoor ambient, useful for server rooms, grow rooms, and any space that needs year-round cooling.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 39.1A with a maximum overcurrent protection of 45A. Wire the outdoor unit with 6 AWG copper on a dedicated 45A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — Professional Install
This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system. Ships with R410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Sound Level & Comfort Features
Rated sound output is 68 dB(A) at full operation.
Warranty & Certifications
Manufacturer warranty: 10 years on parts, 10 years on the compressor. AHRI certified and UL/ETL listed for North American electrical safety — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Package Heat Pump.
Product Details
Experience top-tier heating and cooling efficiency while simultaneously reducing utility bills and lessening your environmental footprint with the MRCOOL® DC Inverter Package Heat Pump. This energy-efficient ducted system delivers comfort through a single, conveniently packaged outdoor unit, all without the need for fossil fuels. The root of its exceptional efficiency lies in the variable speed DC compressor, which minimizes power loss, ensuring the unit operates at a notably lower noise level. This translates into uninterrupted regulation of room temperature to cater to individual preferences. The compressor and DC motor's adjustable speeds provide a wide range of cooling and heating, spanning from -22°F to 125°F. The unit also offers versatile air return options from either the side or the bottom, accommodating both traditional and rooftop installations. For added flexibility, optional heat kits are available to suit specific requirements. What sets the MRCOOL® DC Inverter Package Heat Pump apart is its rapid response to indoor and outdoor temperature changes, efficiently adapting to load demands. Additionally, its intelligent defrosting technology enhances winter heating performance by assessing frost conditions. Rest assured in your investment with 10-year warranties covering labor, parts, and the compressor—all without the need for cumbersome registration processes. Elevate your comfort, energy efficiency, and peace of mind today with MRCOOL®
Specifications
| Cooling Capacity | 56,000 BTU |
| Heating Capacity | 57,000 BTU |
| SEER2 Rating | 17 |
| Voltage | 208-230 V |
| Refrigerant | R410A |
| Noise Level | 68 dBA |
| HSPF2 (Heating Efficiency) | 8.3 |
| EER2 | 10.6 |
| Tonnage | 5 Ton |
| Phase | 1 |
| Refrigerant Type | R410A |
| Refrigerant Charge | 236.4 oz |
Features
- Wired thermostat included
- Inverter Technology
- Energy Efficient
- Flexible air return
- Fast heating & cooling
- Intelligent defrosting
- 10 year labor warranty included
- Conforms to UL Std. 60335-1, 60335-2-40
- Certified to CSA Std. C22.2 No. 60335-1, 60335-2-40
- Intertek #3097844
