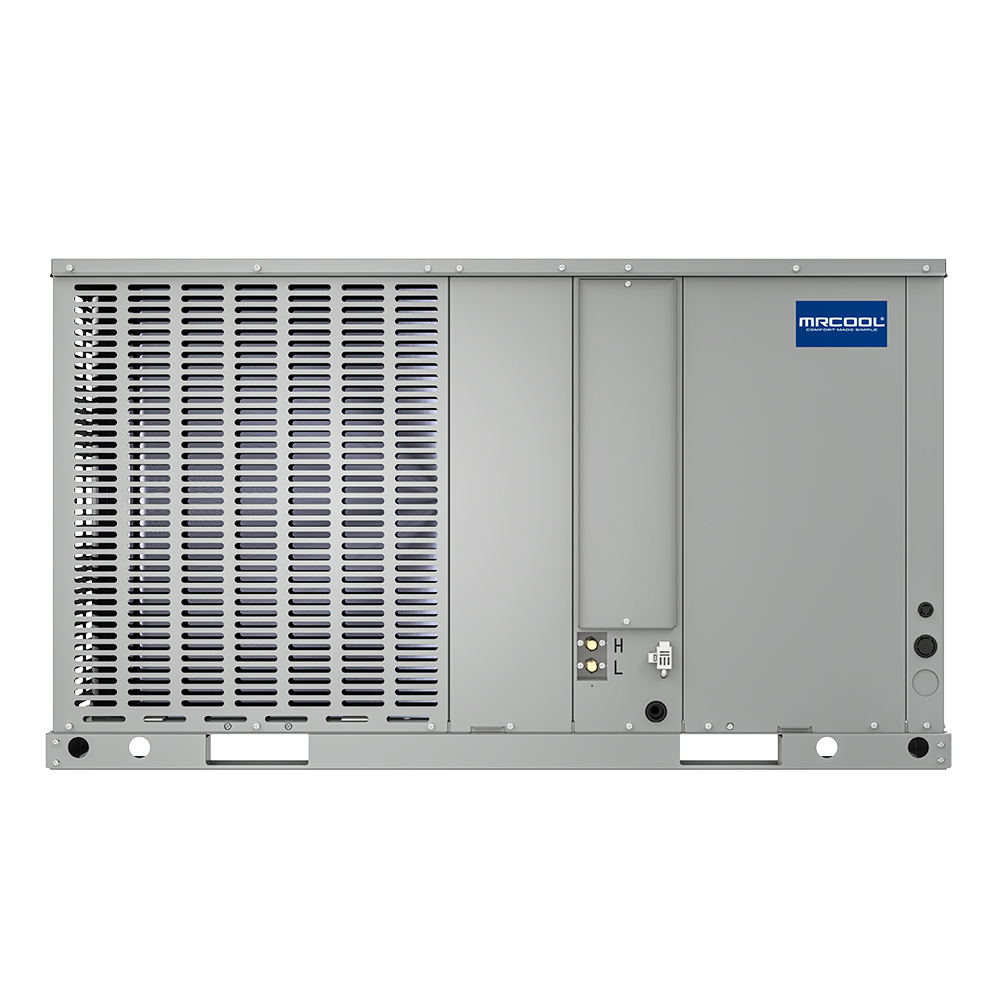

MRCOOL® VersaPro™ 24k BTU Heat Pump Package Unit
SKU MPH241H413B
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
Sizing Help
Not sure if 24K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
MRCOOL® VersaPro™ 24k BTU Heat Pump Package Unit
What's in the Box
Here's what you'll receive with your order
MRCOOL® VersaPro™ 24k BTU Heat Pump Package Unit
As described
Key Specifications
13.4
SEER2 Rating
24000BTU
Cooling Capacity
208-230V
Voltage
24000BTU
Heating Capacity
MRCOOL® VersaPro™ 24k BTU Heat Pump Package Unit — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 24,000 BTU
The MRCOOL® VersaPro™ 24k BTU Heat Pump Package Unit delivers 24,000 BTU of cooling and heating capacity, sized for spaces up to 1,200 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit handles medium primary rooms, master suites with attached bath, converted garages, and workshops. If your space includes a sunny west-facing wall or a finished bonus room above it, lean toward the upper end of the coverage range.
Efficiency & Operating Cost
This unit is rated at 13.4 SEER2. SEER2 measures seasonal cooling efficiency — higher is better — and 13.4 meets current federal baseline. Running the unit 8 hours a day at full load draws roughly 430 kWh/month — about $69/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 15A with a maximum overcurrent protection of 20A. Wire the outdoor unit with 12 AWG copper on a dedicated 20A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — Professional Install
This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system. Ships with R410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Warranty & Certifications
When you register your unit within 60 days of purchase you get 10 Years on parts and 10 Years on the compressor through MrCool's registered warranty program. Unregistered coverage drops to 5 Years / 5 Years — registration takes 3 minutes at mrcool.com and is the highest-ROI post-purchase step you can take. AHRI certified and UL/ETL listed for North American electrical safety — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Package Heat Pump.
Product Details
During the hottest or coldest weather conditions, the MRCOOL® VersaPro™ 24K BTU 13.4 SEER2 Package Heat Pump combines high performance cooling and powerful heating in one convenient, easy-to-install system. With an anti-rust, power-painted galvanized steel cabinet, this sensible heating and cooling solution is both affordable and durable. The unit’s high-efficiency compressors operate smoothly, quietly, and consistently. To increase the unit’s lifespan, internal safeguards protect the compressors against high and low pressure, coil temperature, and power surges. Thanks to the PSC blower motor and enhanced copper tube and aluminum fin indoor and outdoor coils, the package heat pump is highly efficient–boasting a 13.4 SEER2 rating. The unit utilizes R410A refrigerant, which is environmentally friendly. It also features a quiet, horizontal discharge and can accommodate an electric heat kit if desired. In order to become both AHRI certified and ETL listed, the package heat pump underwent strenuous testing to ensure it meets the highest quality standards, so you know you can rest easy knowing your home comfort is strong and reliable. For added peace of mind, simply register the unit within 90 days to activate a 10 year warranty on both parts and the compressor. Even without registration, the unit is backed by a standard 5 year parts and compressor warranty.
Specifications
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| SEER2 Rating | 13.4 |
| Voltage | 208-230 V |
| Refrigerant | R410A |
| Phase | 1 |
| Refrigerant Type | R410A |
| Refrigerant Charge | 93 oz |
Features
- Intertek Cert: 3124627
- Quiet Horizontal Discharge
- Durable Galvanized Steel Cabinet
- High Efficiency Compressor
- Internal Safeguards
- Copper Tube/Aluminum Fin Coil
- Optional Electric Heat Kit
