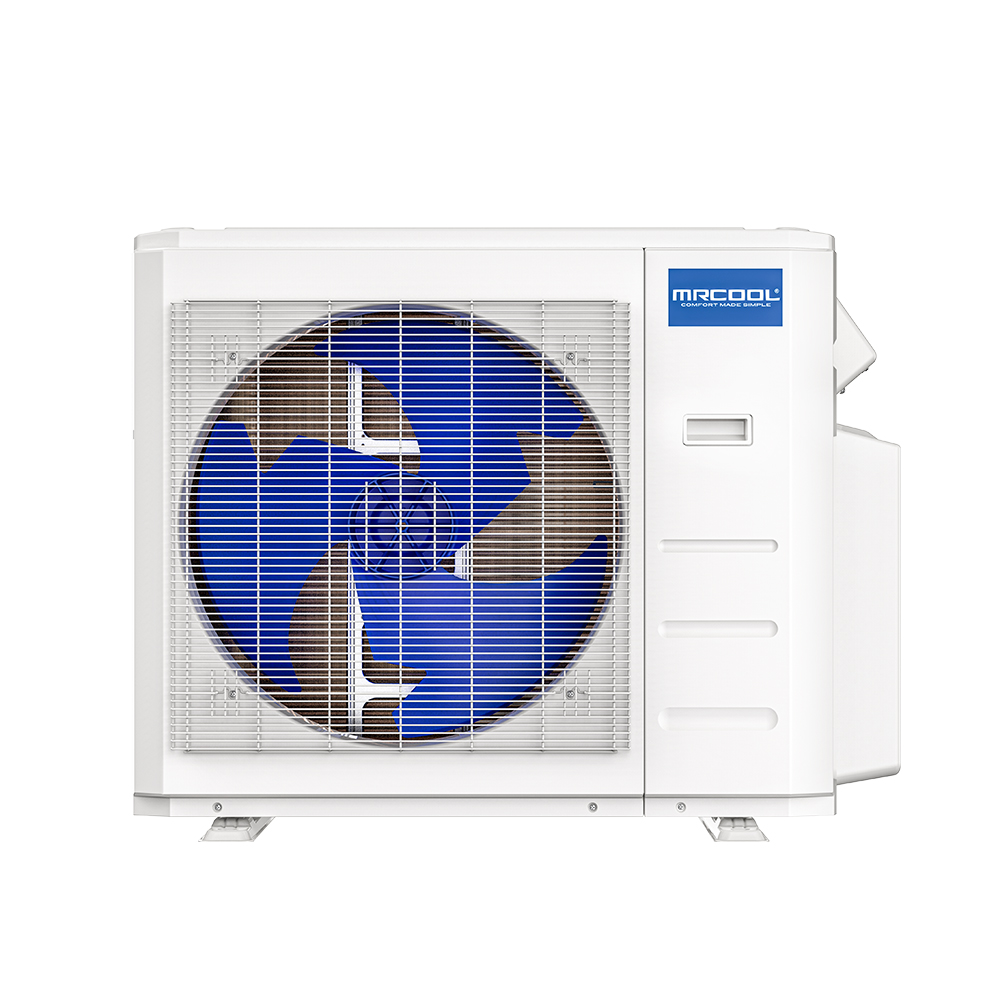

MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser
Component — Not a Complete System
This is the outdoor unit only. To run, you also need a matching indoor air handler and a refrigerant line set. Looking for the complete system instead? Browse complete 36,000 BTU systems.
SKU DIY-MULTI4-36HP230C
With Incentives
Save up to $1,25921.5 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
MrCool DIY factory warranty — register after install to activate the full coverage tiers.
Sizing Help
Not sure if 36K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser
What's in the Box
Here's what you'll receive with your order
MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser
As described
Key Specifications
21.5
SEER2 Rating
36000BTU
Cooling Capacity
208-230V
Voltage
65dBA
Noise Level
Up to 4
Zone Capacity
MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 36,000 BTU
The MRCOOL® DIY 4th Gen Multi-Zone 4-Zone Condenser delivers 36,000 BTU of cooling and heating capacity, sized for spaces up to 1,500 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit is typically used for open-plan main floors, large garages, pole barns, finished basements, and small commercial bays. For homes with vaulted ceilings, heavy sun exposure, or poor insulation, plan on ~20% more BTU per square foot than the nominal coverage. As a multi-zone system this condenser supports up to 4 independent indoor heads, each with its own thermostat and mode — so bedrooms can cool while the living room heats, on one outdoor unit.
Efficiency & Operating Cost
This unit is rated at 21.5 SEER2 and 10.5 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 21.5 puts this in the premium efficiency tier. Running the unit 8 hours a day at full load draws roughly 402 kWh/month — about $64/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time.
Cold & Hot Weather Operating Range
This system produces rated heating capacity down to -1375.2°F ambient, putting it in hyper-heat territory suitable for northern climates where ducted gas is the usual backup. On the cooling side the compressor runs down to 5122°F outdoor ambient, useful for server rooms, grow rooms, and any space that needs year-round cooling. The inverter-driven compressor modulates between roughly 30% and 110% of rated capacity instead of cycling on/off, which both extends runtime at extreme temperatures and holds tighter setpoints (±0.5°F) versus ±2–3°F on fixed-speed units.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 27A with a maximum overcurrent protection of 45A. Wire the outdoor unit with 6 AWG copper on a dedicated 45A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — DIY-Friendly
This DIY 4th Gen Multi-Zone system ships with a pre-charged Quick Connect line set — no HVAC license, no vacuum pump, no refrigerant gauges. The pre-charged fittings use a hand-tightened mechanical seal that a homeowner completes in 15 minutes per connection. Typical install time from unboxing to first cool air is 4–8 hours for a single-head system. The system supports line set lengths up to 221ft; longer runs are available as accessory kits. Plan the shortest practical route — every 10ft of line set adds roughly 2% capacity loss. Ships with R-410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Sound Level & Comfort Features
Rated sound output is 65 dB(A) at full operation.
Warranty & Certifications
When you register your unit within 60 days of purchase you get Limited Lifetime Compressor on the compressor through MrCool's registered warranty program. Unregistered coverage drops to 5-year Parts / 7-year Compressor — registration takes 3 minutes at mrcool.com and is the highest-ROI post-purchase step you can take.
What's in the Box & Compatibility
Ships as a Mini-Split.
Product Details
The 4th Generation MRCOOL® DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations.This condenser has the ability to support up to 4 zones and, when paired with select MrCool air handlers, can provide a SEER efficiency rating of up to 21.5. It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MrCool stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty. However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets are precharged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete. The 4th Generation MrCool DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.
Specifications
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| SEER2 Rating | 21.5 |
| Voltage | 208-230 V |
| Refrigerant | R-410A |
| Noise Level | 65 dBA |
| Zone Capacity | Up to 4 zones |
| Max Line Set | 221 TOTAL ft |
| SEER Rating | 21.5 |
| EER2 | 10.5 |
| Airflow | 2147.06 CFM |
| Phase | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Charge | 134.04 oz |
| Liquid Line Size | 1/4 (3/8 w/ adapter) |
| Suction Line Size | 1/2 (5/8 w/ adapter) |
Features
- Up to 21.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Line sizes 1/4”, 1/2” & 3/8”, 5/8”
- Multi-Zone Condenser includes adapter for the 24K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns
