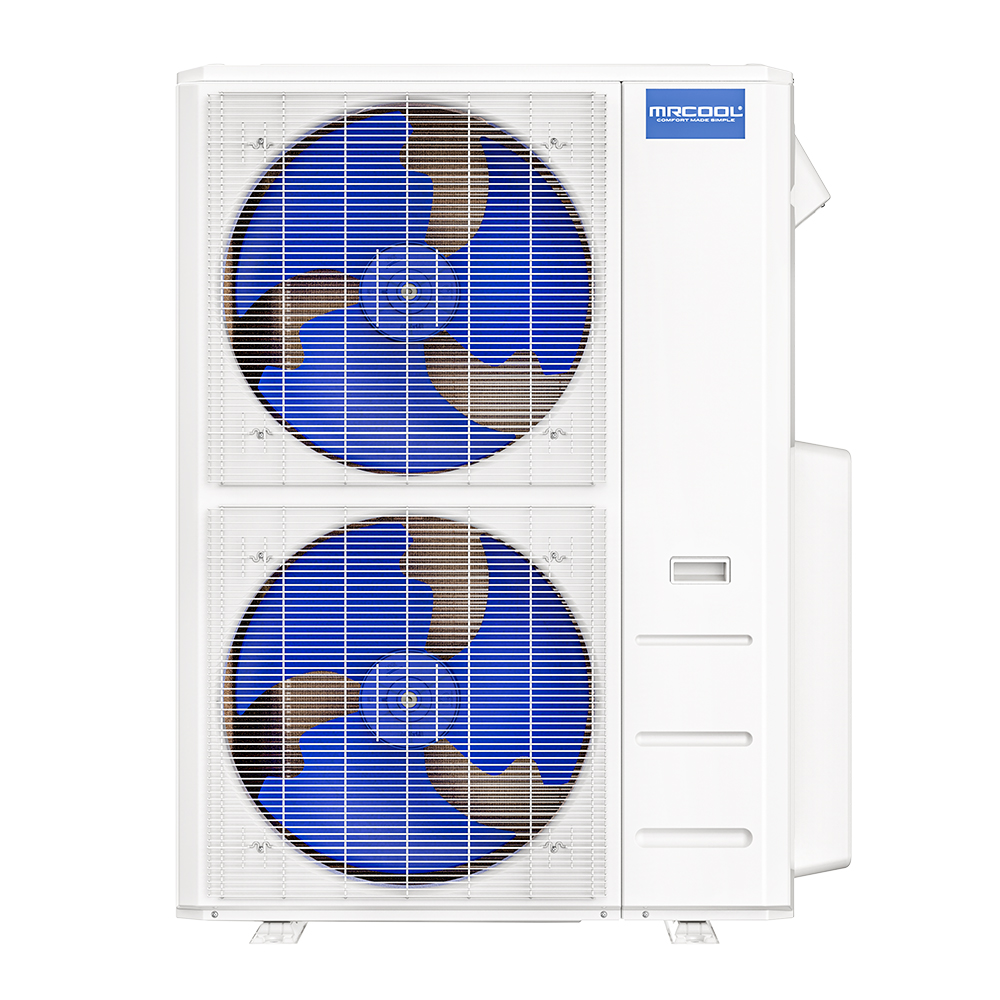

MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser
Component — Not a Complete System
This is the outdoor unit only. To run, you also need a matching indoor air handler and a refrigerant line set. Looking for the complete system instead? Browse complete 48,000 BTU systems.
SKU DIY-MULTI5-48HP230C
With Incentives
Save up to $1,64820.5 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
MrCool DIY factory warranty — register after install to activate the full coverage tiers.
Sizing Help
Not sure if 48K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser
What's in the Box
Here's what you'll receive with your order
MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser
As described
Key Specifications
20.5
SEER2 Rating
48000BTU
Cooling Capacity
208-230V
Voltage
61.5dBA
Noise Level
Up to 5
Zone Capacity
MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 48,000 BTU
The MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser delivers 48,000 BTU of cooling and heating capacity, sized for spaces up to 2,000 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit is typically used for open-plan main floors, large garages, pole barns, finished basements, and small commercial bays. For homes with vaulted ceilings, heavy sun exposure, or poor insulation, plan on ~20% more BTU per square foot than the nominal coverage. As a multi-zone system this condenser supports up to 5 independent indoor heads, each with its own thermostat and mode — so bedrooms can cool while the living room heats, on one outdoor unit.
Efficiency & Operating Cost
This unit is rated at 20.5 SEER2 and 11 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 20.5 puts this in the premium efficiency tier. Running the unit 8 hours a day at full load draws roughly 562 kWh/month — about $90/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time.
Cold & Hot Weather Operating Range
This system produces rated heating capacity down to 575.2°F ambient, best paired with a supplemental heat source in cold climates. On the cooling side the compressor runs down to 5122°F outdoor ambient, useful for server rooms, grow rooms, and any space that needs year-round cooling. The inverter-driven compressor modulates between roughly 30% and 110% of rated capacity instead of cycling on/off, which both extends runtime at extreme temperatures and holds tighter setpoints (±0.5°F) versus ±2–3°F on fixed-speed units.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 40A with a maximum overcurrent protection of 60A. Wire the outdoor unit with 6 AWG copper on a dedicated 60A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — DIY-Friendly
This DIY 4th Gen Multi-Zone system ships with a pre-charged Quick Connect line set — no HVAC license, no vacuum pump, no refrigerant gauges. The pre-charged fittings use a hand-tightened mechanical seal that a homeowner completes in 15 minutes per connection. Typical install time from unboxing to first cool air is 4–8 hours for a single-head system. The system supports line set lengths up to 221ft; longer runs are available as accessory kits. Plan the shortest practical route — every 10ft of line set adds roughly 2% capacity loss. Ships with R-410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Sound Level & Comfort Features
Rated sound output is 61.5 dB(A) at full operation.
Warranty & Certifications
When you register your unit within 60 days of purchase you get Limited Lifetime Compressor on the compressor through MrCool's registered warranty program. Unregistered coverage drops to 5-year Parts / 7-year Compressor — registration takes 3 minutes at mrcool.com and is the highest-ROI post-purchase step you can take.
What's in the Box & Compatibility
Ships as a Mini-Split.
Product Details
Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach 5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.
Specifications
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| SEER2 Rating | 20.5 |
| Voltage | 208-230 V |
| Refrigerant | R-410A |
| Noise Level | 61.5 dBA |
| Zone Capacity | Up to 5 zones |
| Max Line Set | 221 TOTAL ft |
| SEER Rating | 20.5 |
| EER2 | 11 |
| Airflow | 4500 CFM |
| Phase | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Charge | 162 oz |
| Liquid Line Size | 1/4 (3/8 w/ adapter) |
| Suction Line Size | 1/2 (5/8 w/ adapter) |
Features
- Up to 20.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Line sizes 1/4”, 1/2” & 3/8”, 5/8”
- Multi-Zone Condenser includes adapter for the 24K and 36K Air Handler (3/8", 5/8" Line Size) - see liquid line and suction line size columns
Frequently Asked Questions
Everything you need to know about this product
What size room will the MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser cool?
Can I install this myself without an HVAC license?
Is this unit eligible for the federal 25C tax credit?
How cold can it get outside before this heat pump stops heating?
What electrical circuit do I need for installation?
Can I add more indoor units later on this condenser?
How fast does HVACZAR ship this unit?
What if it arrives damaged or I change my mind?
What is the warranty on the MRCOOL® DIY 4th Gen Multi-Zone 5-Zone Condenser?
How long does shipping take?
What size room does 48,000 BTU cover?
What is the efficiency rating?
Do you offer returns?
How can I pay?
