MRCOOL® 36k DIY 5th Generation Bundle - includes Condenser, Air Handler, DIY® Quick Connect® Line Set, DIYPRO® Cable, and Remote - 230v
SKU DIY-36-HP-WM-230D25-O
With Incentives
Save up to $1,95418 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
Customize it — compatible add-ons only
Only needed when the run from condenser to indoor unit is longer.
Lifts the condenser above snow, mud, and runoff.
Joins two line sets end-to-end for extra-long runs — MrCool's official method.
Clean channel for the lines running down your exterior wall.
Universally compatible tools and care items — maintenance kit, coil cleaner, install tools.
MrCool DIY factory warranty — register after install to activate the full coverage tiers.
Sizing Help
Not sure if 36K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
MRCOOL® 36k DIY 5th Generation Bundle - includes Condenser, Air Handler, DIY® Quick Connect® Line Set, DIYPRO® Cable, and Remote - 230v
What's in This System
The actual units this bundle ships with — pictured individually, priced as one system.

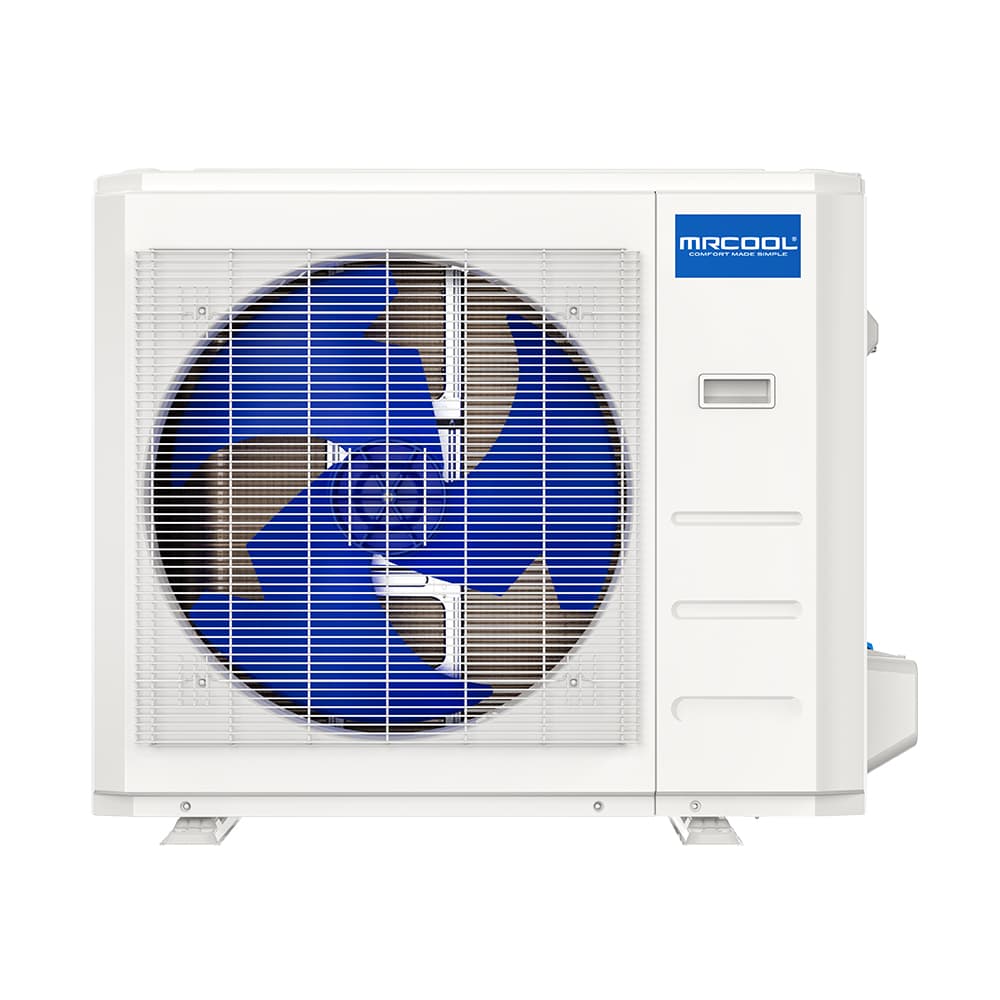

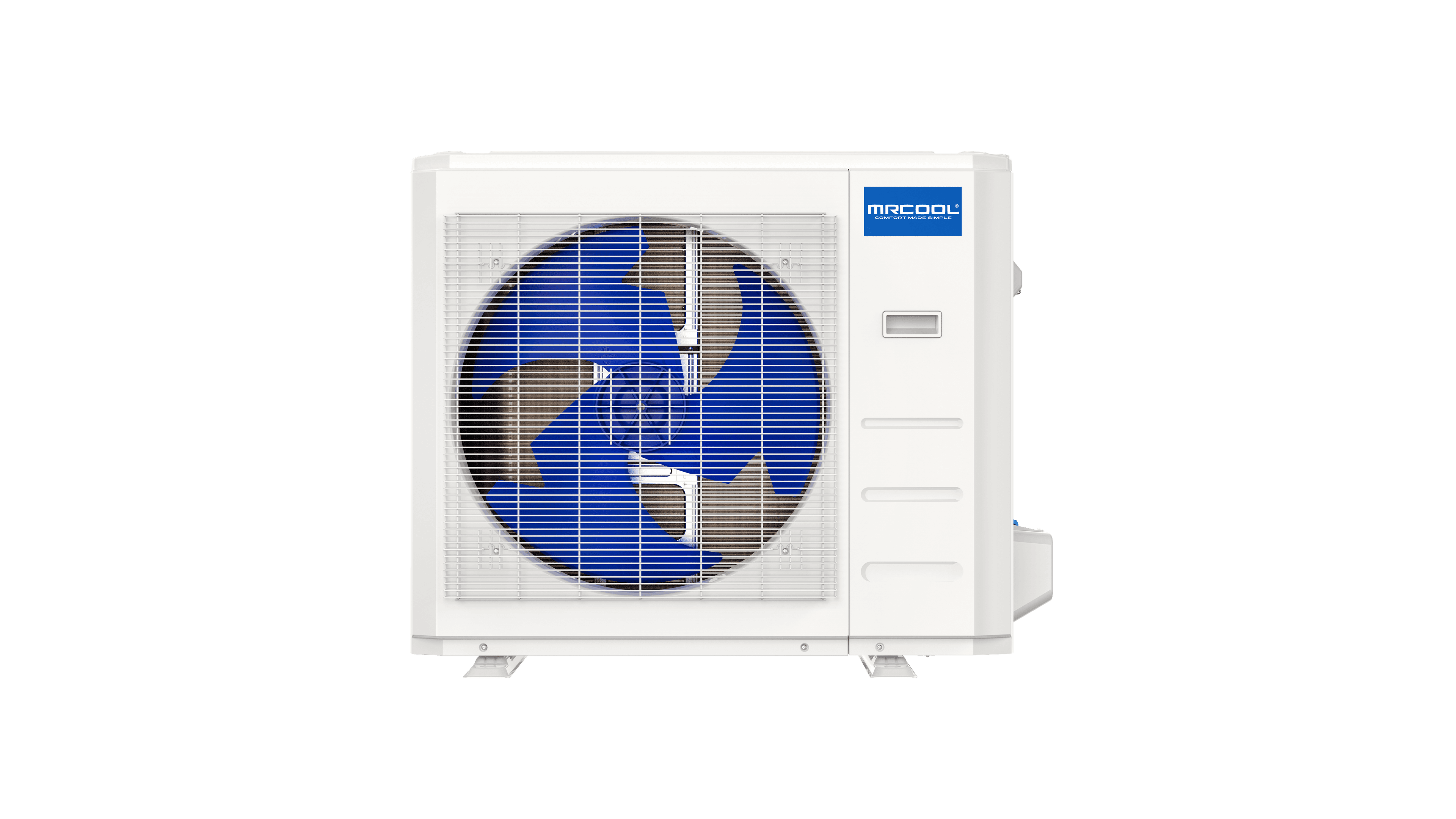

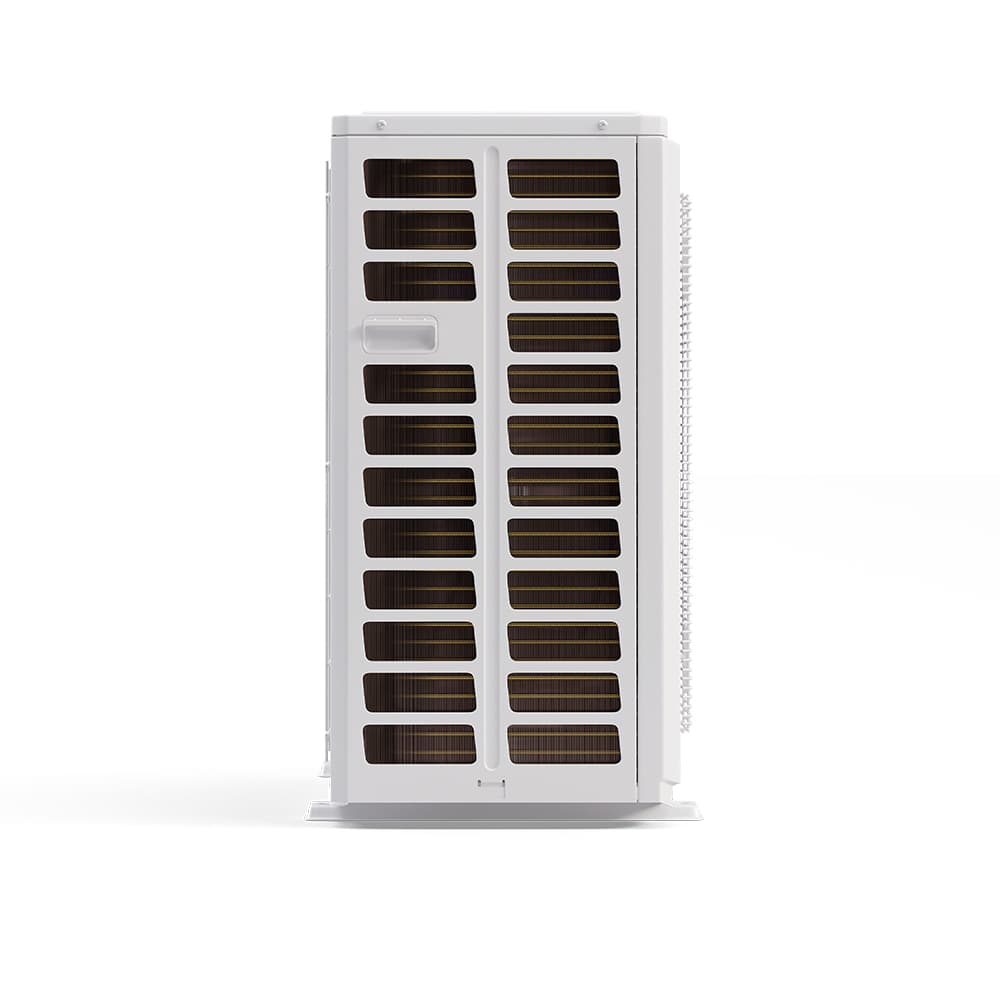

Outdoor Condenser — included
MRCOOL® 36k DIY 5th Generation Mini-Split Condenser 230v
Sold separately for $2,488
View this unit's full specsIndoor Air Handler — included
MRCOOL® 36k DIY 5th Generation Mini-split Air Handler 230v
Sold separately for $1,281
View this unit's full specs25 ft Quick Connect® Line Set
Pre-charged copper lines — in the box, no vacuum pump needed
DIYPro® Cable
Armored communication & power cable
Wireless Remote
Handheld remote with Follow Me sensing
Smart HVAC Controller
Wi-Fi app control — Alexa & Google Assistant
Bought separately these units run $3,769 — this system saves you $400.
Key Specifications
18
SEER2 Rating
36000BTU
Cooling Capacity
1550sq ft
Coverage Area
208/230V
Voltage
60.5dBA
Noise Level
MRCOOL® 36k DIY 5th Generation Bundle - includes Condenser, Air Handler, DIY® Quick Connect® Line Set, DIYPRO® Cable, and Remote - 230v — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 36,000 BTU
The MRCOOL® 36k DIY 5th Generation Bundle - includes Condenser, Air Handler, DIY® Quick Connect® Line Set, DIYPRO® Cable, and Remote - 230v delivers 36,000 BTU of cooling and heating capacity (3-ton class), sized for spaces up to 1,550 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit is typically used for open-plan main floors, large garages, pole barns, finished basements, and small commercial bays. For homes with vaulted ceilings, heavy sun exposure, or poor insulation, plan on ~20% more BTU per square foot than the nominal coverage.
Efficiency & Operating Cost
This unit is rated at 18 SEER2 and 8.5 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 18 meets modern federal minimum standards with headroom for utility rebates in most states. For heating performance it carries a 8.5 HSPF2 rating, which translates to roughly 250–300% heating efficiency versus resistance electric — one kilowatt-hour of electricity moves three kWh of heat into the space at mild outdoor temperatures. Running the unit 8 hours a day at full load draws roughly 480 kWh/month — about $77/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time.
Power & Electrical Requirements
Power requirement: 208/230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 33A with a maximum overcurrent protection of 35A. Wire the outdoor unit with 8 AWG copper on a dedicated 35A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — DIY-Friendly
This DIY 5th gen Single-Zone Mini-split Bundle system ships with a pre-charged Quick Connect line set — no HVAC license, no vacuum pump, no refrigerant gauges. The pre-charged fittings use a hand-tightened mechanical seal that a homeowner completes in 15 minutes per connection. Typical install time from unboxing to first cool air is 4–8 hours for a single-head system. The system supports line set lengths up to 213.2ft; longer runs are available as accessory kits. Plan the shortest practical route — every 10ft of line set adds roughly 2% capacity loss. Ships with R-454B refrigerant. R-454B is the EPA 2025-compliant low-GWP replacement for R-410A, required for new-manufacture equipment — lower global-warming footprint without an efficiency penalty.
Sound Level & Comfort Features
Operating sound level ranges from 27.5 dB(A) on low to 55.5 dB(A) on high — the low end is whisper-quiet, below a normal conversation (60 dB) and comparable to a library reading room. The indoor blower offers 5 fan speeds plus auto mode, letting you trade airflow for quiet operation in bedrooms while running louder in living areas. Quiet mode caps fan speed and compressor rpm for an extra 2–3 dB drop in sound output.
Warranty & Certifications
Manufacturer warranty: 5 on parts, 7 on the compressor. AHRI certified and UL/ETL listed for North American electrical safety — required for most utility rebate and tax credit programs.
Product Details
The 5th Generation MRCOOL® DIY® 36k BTU 18 SEER Ductless Heat Pump Single Zone Mini Split System makes it easy to stay comfortable year-round. Designed for straightforward installation, this system requires no special tools or professional expertise, making it a great choice for spaces between 1,000-1,500 sq. ft. Installation is hassle-free thanks to the pre-charged 25-foot QuickConnect® line set, which comes filled with R-454B refrigerant, eliminating the need for vacuuming. The DIYPRO® cable adds extra durability, replacing traditional electrical conduit to safeguard against weather, animals, and yardwork damage. Multiple control options let you adjust settings with ease. Use the included remote, the SmartHVAC app on Apple or Android devices, or voice commands via Amazon Alexa and Google Assistant. If you live near the coast, the Gold Fin System offers excellent corrosion resistance, ensuring long-lasting performance. This system includes features that enhance both comfort and efficiency. The Timer function helps manage energy use, while Auto mode keeps your space at your preferred temperature without manual adjustments. After a power outage, the system automatically restores its previous settings. Designed for reliability, the 5th Generation MRCOOL® DIY® Mini Split comes with an industry-leading limited lifetime warranty, along with a 7-year compressor and 5-year parts warranty. With innovative technology, easy setup, and long-term dependability, this system delivers efficient climate control without the stress.
Specifications
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| SEER2 Rating | 18 |
| HSPF2 | 8.5 |
| Voltage | 208/230 V |
| Refrigerant | R-454B |
| Noise Level | 60.5 dBA |
| Coverage Area | 1550 sqft sq ft |
| Zone Capacity | 1 zones |
| Max Line Set | 213.2 ft |
| EER2 | 8.5 |
| Tonnage | 3 Ton |
| Phase | 1 |
| Refrigerant Type | R-454B |
| Refrigerant Charge | 109.7 oz |
| Liquid Line Size | 3/8 |
| Suction Line Size | 5/8 |
Features
- NEEP ccASHP Listed
- Intertek listed 5031495
- Easy DIY installation
- Future-proof your investment with the included DIYPro® cable, eliminating the need for electrical conduit.
- Keep the included remote close by, and MRCOOL DIY®'s Follow Me® function will track the air temperature around you to ensure maximum comfort.
- The MRCOOL® Smart HVAC Controller® Module and App fully support Google Assistant & Amazon Alexa out of the box.
