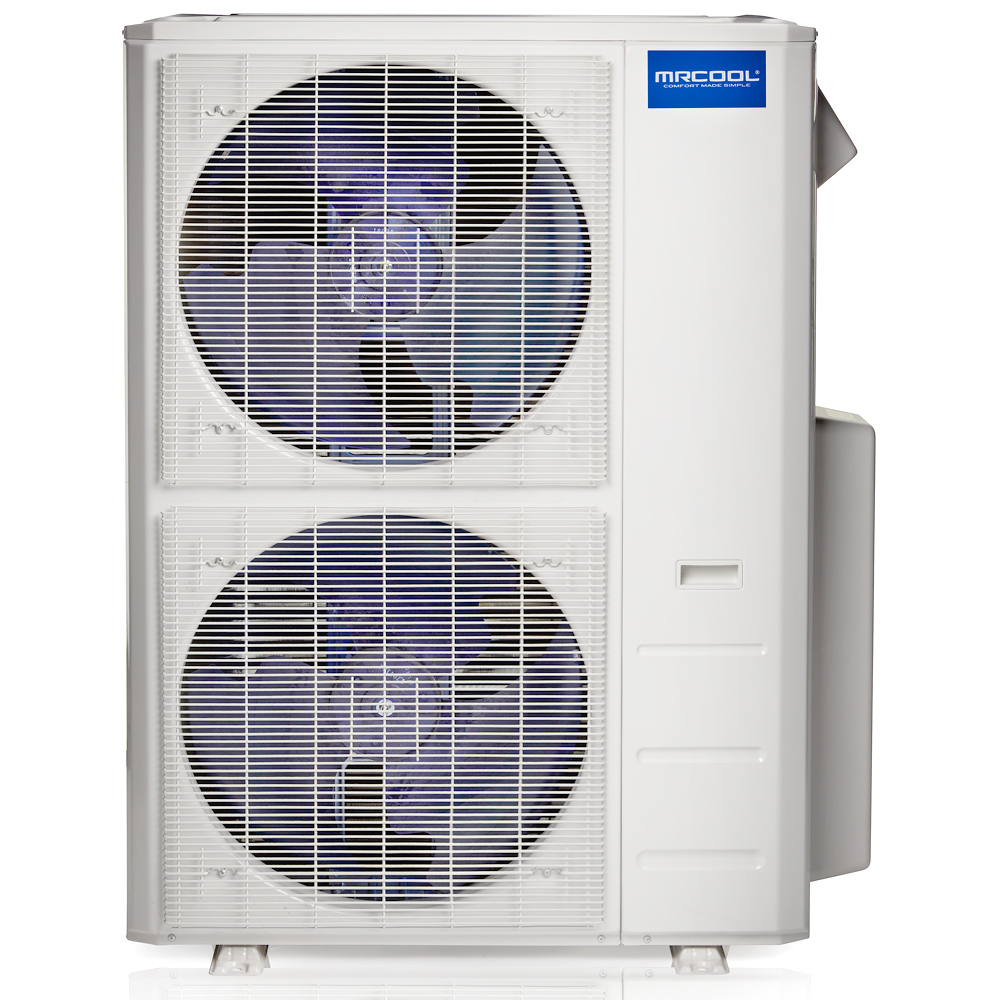

Olympus 48,000 BTU Ductless Mini-Split Condenser - 230V/60Hz
Component — Not a Complete System
This is the outdoor unit only. To run, you also need a matching indoor air handler and a refrigerant line set. Looking for the complete system instead? Browse complete 48,000 BTU systems.
SKU MULTI5-48HP230B
With Incentives
Save up to $2,20723.4 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
Sizing Help
Not sure if 48K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
Olympus 48,000 BTU Ductless Mini-Split Condenser - 230V/60Hz
What's in the Box
Here's what you'll receive with your order
Olympus 48,000 BTU Ductless Mini-Split Condenser - 230V/60Hz
As described
Key Specifications
23.4
SEER2 Rating
48000BTU
Cooling Capacity
208-230V
Voltage
64dBA
Noise Level
5
Zone Capacity
Olympus 48,000 BTU Ductless Mini-Split Condenser - 230V/60Hz — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 48,000 BTU
The Olympus 48,000 BTU Ductless Mini-Split Condenser - 230V/60Hz delivers 48,000 BTU of cooling and heating capacity, sized for spaces up to 2,000 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit is typically used for open-plan main floors, large garages, pole barns, finished basements, and small commercial bays. For homes with vaulted ceilings, heavy sun exposure, or poor insulation, plan on ~20% more BTU per square foot than the nominal coverage. As a multi-zone system this condenser supports up to 5 independent indoor heads, each with its own thermostat and mode — so bedrooms can cool while the living room heats, on one outdoor unit.
Efficiency & Operating Cost
This unit is rated at 23.4 SEER2 and 12.5 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 23.4 puts this in the premium efficiency tier. For heating performance it carries a 8.7 HSPF2 rating, which translates to roughly 250–300% heating efficiency versus resistance electric — one kilowatt-hour of electricity moves three kWh of heat into the space at mild outdoor temperatures. Running the unit 8 hours a day at full load draws roughly 492 kWh/month — about $79/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time. ENERGY STAR certification makes this SKU eligible for federal tax credits (25C in 2026, up to 30% / $2,000 for qualifying heat pumps) and most state/utility rebate programs — check your state page for specific amounts.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 40A with a maximum overcurrent protection of 60A. Wire the outdoor unit with 6 AWG copper on a dedicated 60A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — Professional Install
This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system. Ships with R-410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Sound Level & Comfort Features
Rated sound output is 64 dB(A) at full operation.
Warranty & Certifications
When you register your unit within 60 days of purchase you get 5-year on parts and 7-year on the compressor through MrCool's registered warranty program. AHRI certified — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Mini-Split.
Product Details
This MRCOOL® Olympus 48k Ductless Mini-Split Condenser is the answer to your heating and cooling problems without breaking the bank. Rely on this Energy Star certified condenser to help save money on your utility bills thanks to its 22.4 SEER and 11 HSPF. It uses environmentally-friendly refrigerant R-410A, and features Gold Fin® anti-corrosion technology. When installed by a professional and registered, you can feel confident with the 7-year compressor warranty, 5-year parts warranty, and 1-year remote warranty.
Specifications
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| SEER2 Rating | 23.4 |
| HSPF2 | 8.7 |
| Voltage | 208-230 V |
| Refrigerant | R-410A |
| Noise Level | 64 dBA |
| Zone Capacity | 5 zones |
| SEER Rating | Up To 22.4 |
| EER2 | 12.5 |
| Phase | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Charge | 162 oz |
| Liquid Line Size | 1/4 |
| Suction Line Size | 3/8 & 1/2 |
Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- R-410A environmentally friendly refrigerant
- Energy Star certified
