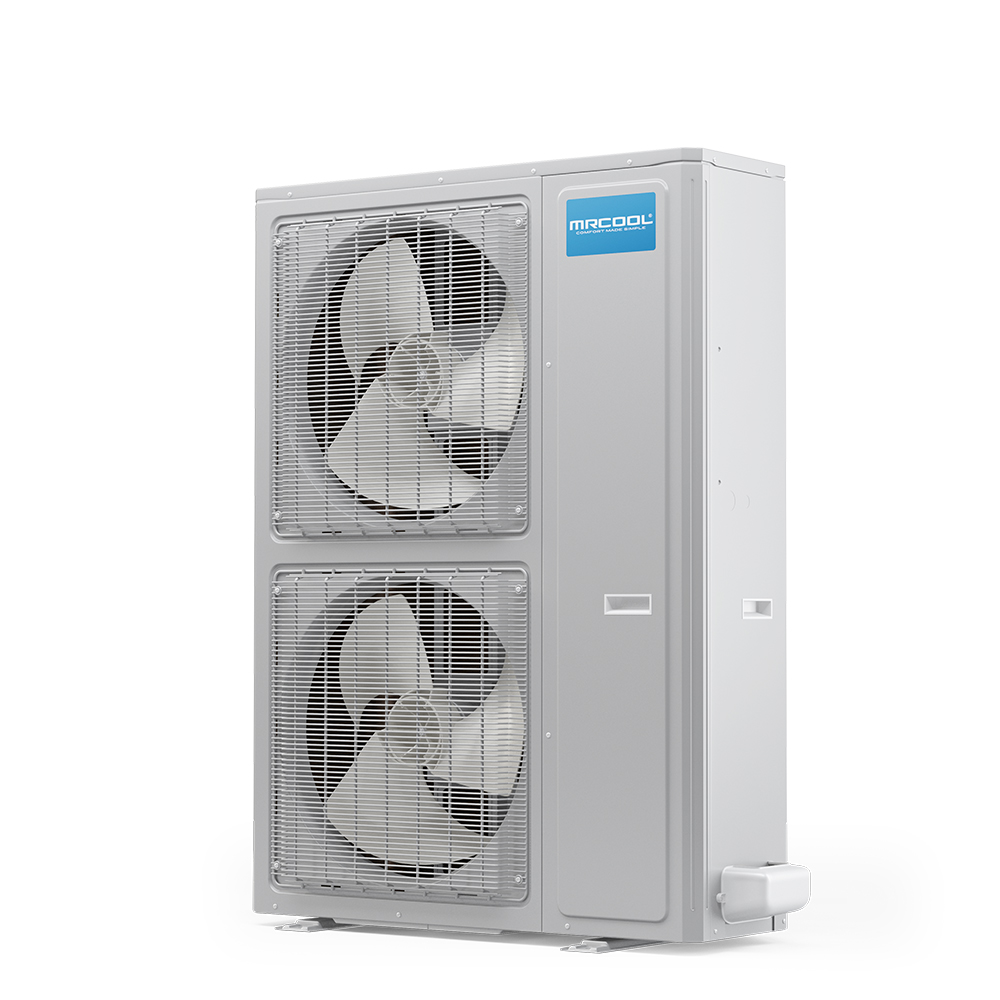

4-5 ton up to 18 SEER Universal Series Condenser
Component — Not a Complete System
This is the outdoor unit only. To run, you also need a matching indoor air handler and a refrigerant line set. Looking for the complete system instead? Browse complete 48,000 BTU systems.
SKU MDUO18048060
With Incentives
Save up to $1,50617 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
Request a quote and we'll check when it's back, or match you to the closest in-stock unit.
We'll reply by email with availability or an in-stock alternative, and you can message us about it any time.
Sizing Help
Not sure if 48K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
4-5 ton up to 18 SEER Universal Series Condenser
What's in the Box
Here's what you'll receive with your order
4-5 ton up to 18 SEER Universal Series Condenser
As described
Key Specifications
17
SEER2 Rating
48000BTU
Cooling Capacity
208-230V
Voltage
58dBA
Noise Level
48000BTU
Heating Capacity
4-5 ton up to 18 SEER Universal Series Condenser — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 48,000 BTU
The 4-5 ton up to 18 SEER Universal Series Condenser delivers 48,000 BTU of cooling and heating capacity (4-ton class), sized for spaces up to 2,000 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit is typically used for open-plan main floors, large garages, pole barns, finished basements, and small commercial bays. For homes with vaulted ceilings, heavy sun exposure, or poor insulation, plan on ~20% more BTU per square foot than the nominal coverage.
Efficiency & Operating Cost
This unit is rated at 17 SEER2 and 11 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 17 meets modern federal minimum standards with headroom for utility rebates in most states. For heating performance it carries a 9 HSPF2 rating, which translates to roughly 300–350% heating efficiency versus resistance electric — one kilowatt-hour of electricity moves three kWh of heat into the space at mild outdoor temperatures. Running the unit 8 hours a day at full load draws roughly 678 kWh/month — about $108/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time. ENERGY STAR certification makes this SKU eligible for federal tax credits (25C in 2026, up to 30% / $2,000 for qualifying heat pumps) and most state/utility rebate programs — check your state page for specific amounts.
Cold & Hot Weather Operating Range
This system produces rated heating capacity down to -2275.2°F ambient, putting it in hyper-heat territory suitable for northern climates where ducted gas is the usual backup. On the cooling side the compressor runs down to 5129.2°F outdoor ambient, useful for server rooms, grow rooms, and any space that needs year-round cooling.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 35A with a maximum overcurrent protection of 45A. Wire the outdoor unit with 6 AWG copper on a dedicated 45A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — Professional Install
This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system. The system supports line set lengths up to 1645ft; longer runs are available as accessory kits. Plan the shortest practical route — every 10ft of line set adds roughly 2% capacity loss. Ships with R-410A refrigerant. R-410A is a mature, widely-serviced refrigerant; service technicians and parts are available at any HVAC supply house.
Sound Level & Comfort Features
Rated sound output is 58 dB(A) at full operation.
Warranty & Certifications
Manufacturer warranty: 5 year limited extended parts warranty on parts. AHRI certified and UL/ETL listed for North American electrical safety — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Universal Series Heat Pump.
Product Details
MRCOOL would like to introduce you to the future of HVAC with its new 17 SEER Ultra-Heat Inverter Unitary Condensing Unit and Air Handler. This unit provides superb comfort while running at an extremely quiet dB, rapid cooling and heating, and maximum savings while running on end. Don't be stuck in the past with your traditional system, think ahead with MRCOOL.
Specifications
| Cooling Capacity | 48,000 BTU |
| Heating Capacity | 48,000 BTU |
| SEER2 Rating | 17 |
| Voltage | 208-230 V |
| Refrigerant | R-410A |
| Noise Level | 58 dBA |
| Max Line Set | 164 / 5 ft |
| SEER Rating | up to 18 |
| HSPF2 (Heating Efficiency) | 9 |
| HSPF | 10.5 |
| EER2 | 11 |
| Tonnage | 4-5 Ton |
| Airflow | 4700 CFM |
| Phase | 1 |
| Refrigerant Type | R-410A |
| Refrigerant Charge | 220.48 oz |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
| Country of Origin | China |
Features
- Up to 18 SEER
- Ultra Wide Operating Temperature Range
- Gas Furnace Not Required
- Two models 36K/60K, heat pump, to cover 24K-60K capacity range
- Slim design allows more storage for warehouse inventory
- Compatible with any third party air handler and thermostat including WiFi/Nest
- Ideal for zero lot line homes, strict sound restriction, conventional installations, and unit replacements
- Rapid cooling and heating
- Internal Fan Blade Creates Low Noise
- Maximum savings while running
Frequently Asked Questions
Everything you need to know about this product
What size room will the 4-5 ton up to 18 SEER Universal Series Condenser cool?
Do I need a licensed HVAC installer?
Is this unit eligible for the federal 25C tax credit?
How cold can it get outside before this heat pump stops heating?
What electrical circuit do I need for installation?
How fast does HVACZAR ship this unit?
What if it arrives damaged or I change my mind?
What is the warranty on the 4-5 ton up to 18 SEER Universal Series Condenser?
How long does shipping take?
What size room does 48,000 BTU cover?
What is the efficiency rating?
Do you offer returns?
How can I pay?
