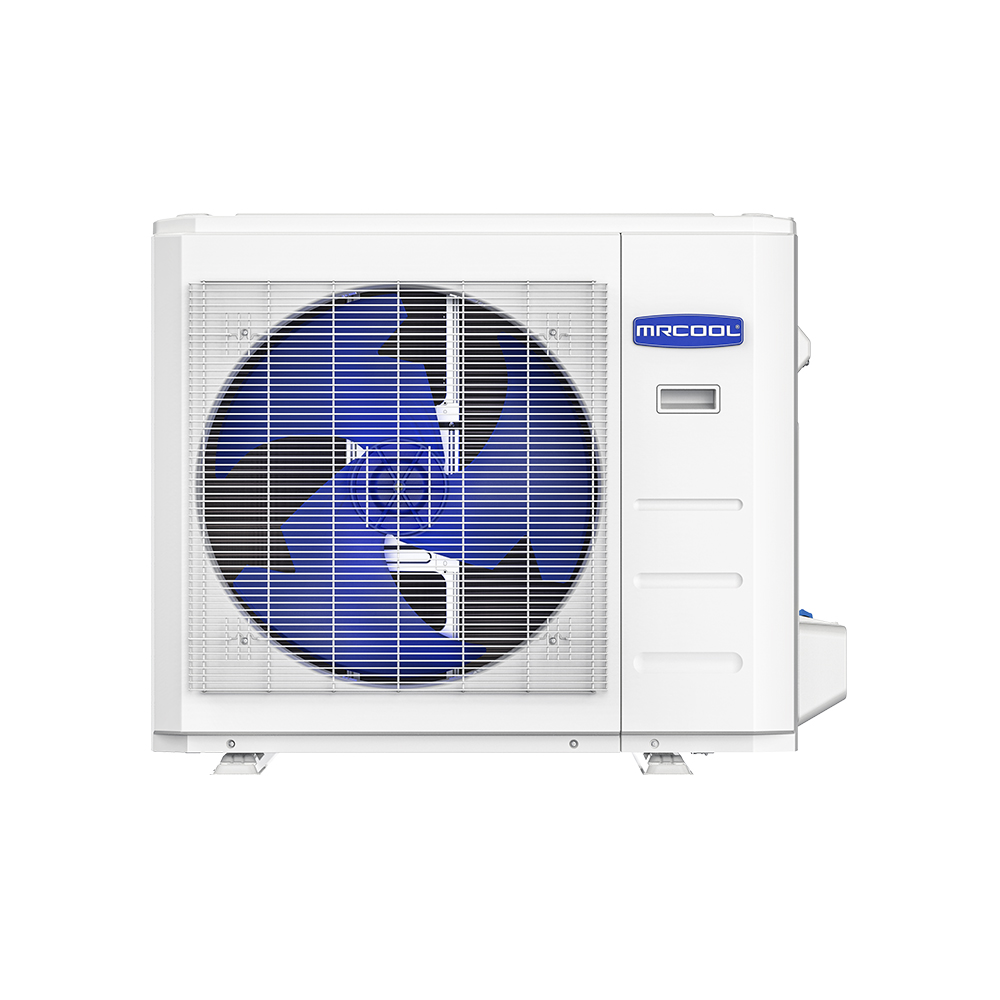

3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser
Component — Not a Complete System
This is the outdoor unit only. To run, you also need a matching indoor air handler and a refrigerant line set. Looking for the complete system instead? Browse complete 36,000 BTU systems.
SKU MVP-36-HP-C-230A00-O
With Incentives
Save up to $1,08416.1 SEER2 meets CEE Tier 2 (≥16). Find your state's rebate
Customize it — compatible add-ons only
Same-capacity indoor unit this condenser is rated with — required to run.
R-454B heat strips for the VersaPro air handler — sized in kW by your installer.
MRCOOL 24V smart thermostat for ducted systems — Wi-Fi control and scheduling.
Maintenance kit and coil cleaner keep efficiency (and the warranty) healthy.
Universally compatible tools and care items — maintenance kit, coil cleaner, install tools.
Sizing Help
Not sure if 36K BTU is right for your space?
Proper sizing prevents short-cycling, high bills, and premature failure. Our sizing tool takes 60 seconds.
Resources
Brochures & Manuals
Description
3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser
What's in the Box
Here's what you'll receive with your order
Outdoor Condenser Unit
Heat pump condenser with Gold Fin anti-corrosion coating
Installation Hardware
Mounting brackets and hardware kit
Owner Manual
Installation and operation guide
Key Specifications
16.1
SEER2 Rating
36000BTU
Cooling Capacity
208-230V
Voltage
63dBA
Noise Level
36000BTU
Heating Capacity
3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser — Model Details
What this specific model is sized for, how it installs, how it performs, and what it costs to run.
Room & Space Coverage — 36,000 BTU
The 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser delivers 36,000 BTU of cooling and heating capacity (3-ton class), sized for spaces up to 1,500 sq ft in standard 8-ft ceiling rooms with average insulation. At this capacity the unit is typically used for open-plan main floors, large garages, pole barns, finished basements, and small commercial bays. For homes with vaulted ceilings, heavy sun exposure, or poor insulation, plan on ~20% more BTU per square foot than the nominal coverage.
Efficiency & Operating Cost
This unit is rated at 16.1 SEER2 and 10 EER2 at full load. SEER2 measures seasonal cooling efficiency — higher is better — and 16.1 meets modern federal minimum standards with headroom for utility rebates in most states. Running the unit 8 hours a day at full load draws roughly 537 kWh/month — about $86/month at the US average $0.16/kWh residential rate. Real-world draw is usually 30–50% lower because inverter compressors modulate down most of the time. ENERGY STAR certification makes this SKU eligible for federal tax credits (25C in 2026, up to 30% / $2,000 for qualifying heat pumps) and most state/utility rebate programs — check your state page for specific amounts.
Power & Electrical Requirements
Power requirement: 208-230V 1-phase 60Hz (standard US residential 240V service). Minimum circuit ampacity is 24A with a maximum overcurrent protection of 30A. Wire the outdoor unit with 10 AWG copper on a dedicated 30A double-pole breaker (or single-pole at 120V), with a disconnect within sight of the condenser per NEC 440.14.
Install Difficulty — Professional Install
This is a professionally-installed condenser that requires a licensed HVAC technician with EPA 608 certification. The tech will pull a vacuum on the line set to 500 microns, pressure-test with nitrogen, release the factory charge, and commission per MrCool's startup procedure. Budget 1 full day for install on a single-zone system. Ships with R454B refrigerant. R-454B is the EPA 2025-compliant low-GWP replacement for R-410A, required for new-manufacture equipment — lower global-warming footprint without an efficiency penalty.
Sound Level & Comfort Features
Rated sound output is 63 dB(A) at full operation.
Warranty & Certifications
Manufacturer warranty: 10 Years on parts, 10 Years on the compressor. AHRI certified — required for most utility rebate and tax credit programs.
What's in the Box & Compatibility
Ships as a Split System Heat Pump Condenser.
Product Details
The 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser offers a reliable and cost-effective solution for heating and cooling your home throughout the year. This unit is built for durability and efficiency, providing dependable comfort in any season. With a variable-speed 36k capacity, the VersaPro® delivers solid performance with a SEER2 rating of 16.1 and an HSPF4 rating of 8.7. These efficiency levels ensure effective heating and cooling while keeping energy costs manageable. When paired with the MRCOOL® VersaPro® Central Ducted Air Handler, it forms a well-rounded system suited to your home’s needs. DC inverter technology ensures smooth operation and energy savings, making it a great choice for replacing older, less efficient systems. Included with the system is the MRCOOL® Smart thermostat,allowing for effortless temperature adjustments. The VersaPro® condenser uses R-454B refrigerant, an eco-friendly option that helps reduce its environmental impact. Its durable painted galvanized steel construction is designed to last, while the compact side-discharge design simplifies installation in tighter spaces. The self-diagnostic system makes maintenance easier, helping to reduce the need for service calls. For added peace of mind, the 3 Ton MRCOOL® VersaPro® Central Ducted Heat Pump Condenser comes with a 10-year warranty that covers the compressor and parts. This warranty ensures long-term reliability and protection for your investment.
Specifications
| Cooling Capacity | 36,000 BTU |
| Heating Capacity | 36,000 BTU |
| SEER2 Rating | 16.1 |
| Voltage | 208-230 V |
| Refrigerant | R454B |
| Noise Level | 63 dBA |
| EER2 | 10 |
| Tonnage | 3 Ton |
| Airflow | 2413.2 CFM |
| Phase | 1 |
| Refrigerant Type | R454B |
| Refrigerant Charge | 116.4 oz |
| Liquid Line Size | 3/8 |
| Suction Line Size | 3/4 |
